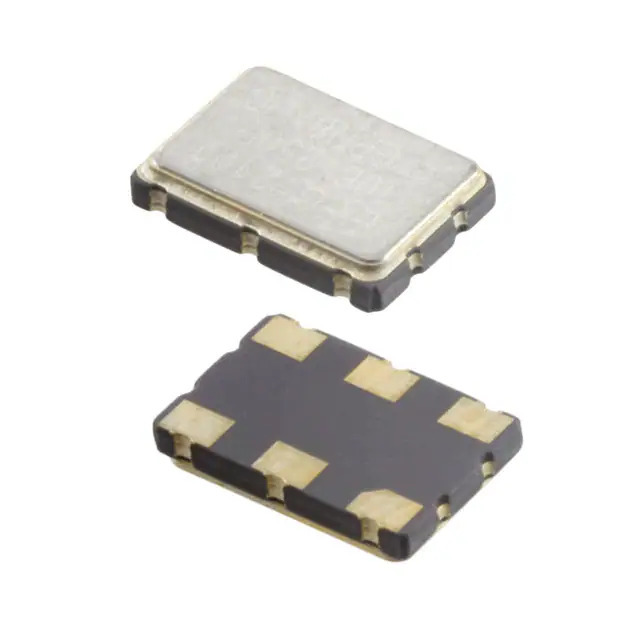

Same model may have multiple batches, images only for reference.
EG-2102CA 156.2500M-PHPAL3 Epson Electronics America Inc-Semiconductor Div
Same model may have multiple batches, images only for reference.

EG-2102CA 156.2500M-PHPAL3

Part No EG-2102CA 156.2500M-PHPAL3
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description XTAL OSC SO 156.2500MHZ LVPECL / 156.25 MHz SO (SAW) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr EPSON
Series EG-2102CA
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type SO (SAW)
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Absolute Pull Range (APR) -
Temperature Range - Operating 0°C ~ 70°C
Current - Supply (Max) 100mA
Ratings -
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.055" (1.40mm)
Current - Supply (Disable) (Max) 32mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1355580-EG-2102CA 156.2500M-PHPAL3
Ultra Librarian 3D Model Ultra Librarian EG-2102CA 156.2500M-PHPAL3 CAD Model

Description

The EPSON EG-2102CA 156.2500M-PHPAL3 oscillator is a high-quality component designed for use in various electronic applications.

  • Frequency: 156.25 MHz
  • Operating Temperature: 0°C to 70°C
  • Package: 6-SMD, no lead
  • Voltage Supply: 3.3V
  • Current Supply: Up to 100mA
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±20ppm
  • Status: Obsolete
