SG5032VAN 100.000000M-KEGA0 Epson Electronics America Inc-Semiconductor Div – Price, Stock & Datasheet

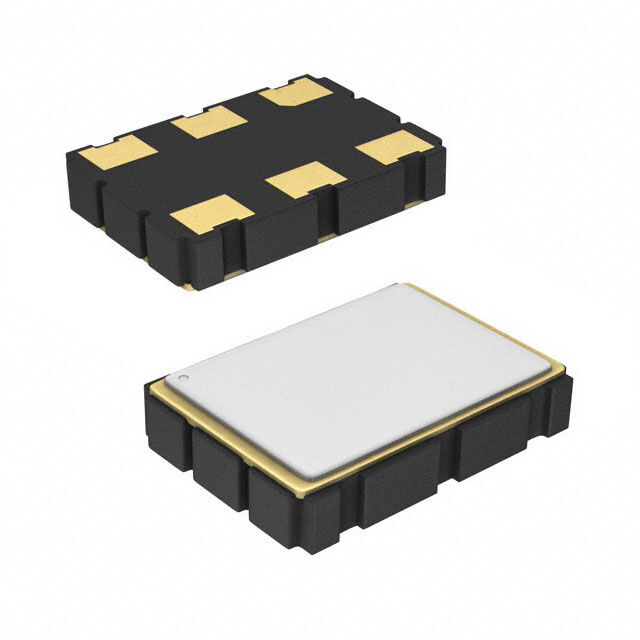

Same model may have multiple batches, images only for reference.

SG5032VAN 100.000000M-KEGA0

Part No SG5032VAN 100.000000M-KEGA0
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description 100 MHz XO (Standard) LVDS Oscillator 2.5V ~ 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPSON
Series SG5032VAN
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.5V ~ 3.3V
Frequency Stability ±30ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 30mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 20mA
Base Product Number SG5032VAN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1480679-SG5032VAN 100.000000M-KEGA0
Ultra Librarian 3D Model Ultra Librarian SG5032VAN 100.000000M-KEGA0 CAD Model
