Same model may have multiple batches, images only for reference.

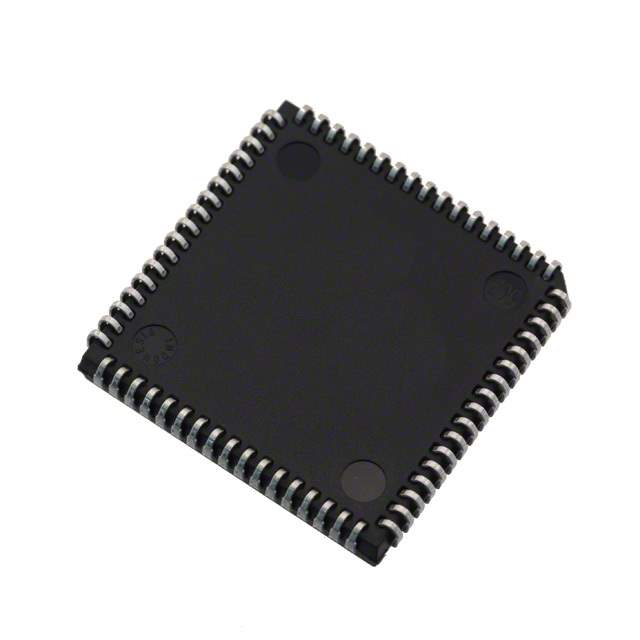

ST16C552IJ68-F Real Image
Same model may have multiple batches, images only for reference.

ST16C552IJ68-F

Part No ST16C552IJ68-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 16B DUAL 68PLCC
Datasheet
ST16C552IJ68-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Tube/Rail
Status Active
Features Configurable GPIO, Printer Port, Timer/Counter
Number of Channels 2, DUART
FIFO's 16 Byte
Data Rate (Max) 1.5Mbps
Supply Voltage - Operating 2.97 V to 5.5 V
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 68-PLCC (24.23x24.23)
Win Source Part Number 047292-ST16C552IJ68-F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ST16C552IJ68-F CAD Model

Description

The Exar Corporation ST16C552IJ68-F is a DUART with configurable GPIO, printer port, and timer/counter features.

  • Channels: Two
  • Data Rate: Up to 1.5Mbps
  • FIFO: 16-byte
  • Features: False start bit detection and modem control, but no auto flow control or IrDA encoder/decoder.
  • Operating Temperature Range: 2.97 V to 5.5 V
  • Package: 68-PLCC case
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
