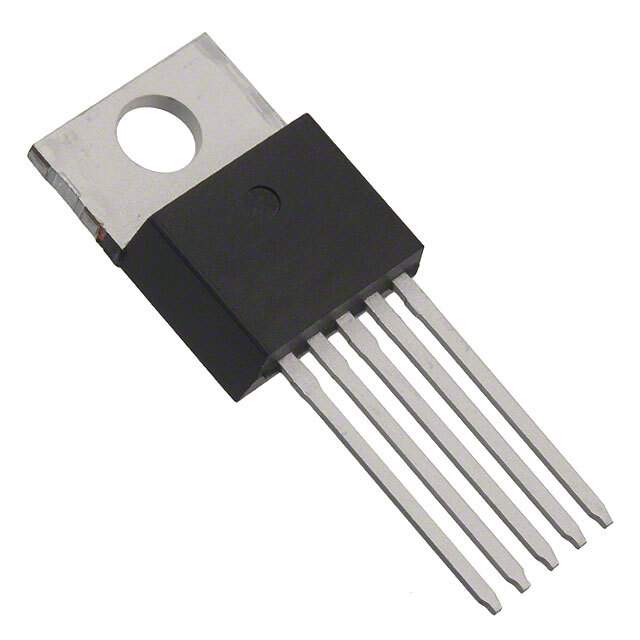

Same model may have multiple batches, images only for reference.

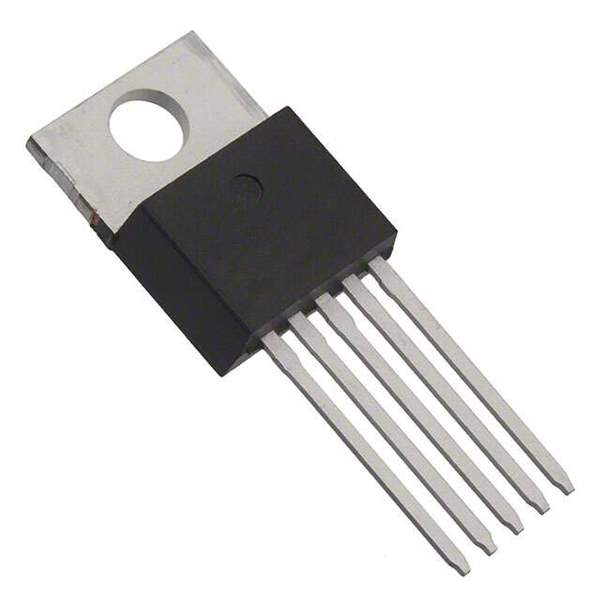

XRP29302ET-L Real Image
Same model may have multiple batches, images only for reference.

XRP29302ET-L

Part No XRP29302ET-L
Manufacturer Exar Corporation
Catalog PMIC - Voltage Regulators - Linear
Description 3A Low Dropout Voltage Regulator
Datasheet
XRP29302ET-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Exar Corporation
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 16V
Output Voltage 1.25V
Output Voltage MAX 16V
Voltage Dropout (Maximum) 0.8V @ 3A
Output Current 3A
Operating Supply Current 60mA
Control Features Enable
Protection Features Over Current, Reverse Polarity, Transient Voltage
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-220-5
Manufacturer Package TO-220-5
Win Source Part Number 1282337-XRP29302ET-L
Manufacturer Homepage www.exar.com
Popularity Medium
Supply and Demand Status Limited
Family Name XRP29302
Introduction Date December 01, 2009
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian XRP29302ET-L CAD Model

Description

The XRP29302ET-L is an adjustable output voltage regulator manufactured by Exar Corporation.

  • Package: TO-220-5
  • Temperature Range: -40°C to 125°C
  • Maximum Output Voltage: 16V
  • Maximum Output Current: 3A
  • Protection: Over Current, Reverse Polarity, and Transient Voltage
  • Popularity: Medium
  • Packaging: Tube
  • Dropout Voltage: 0.8V @ 3A
  • Status: Obsolete
