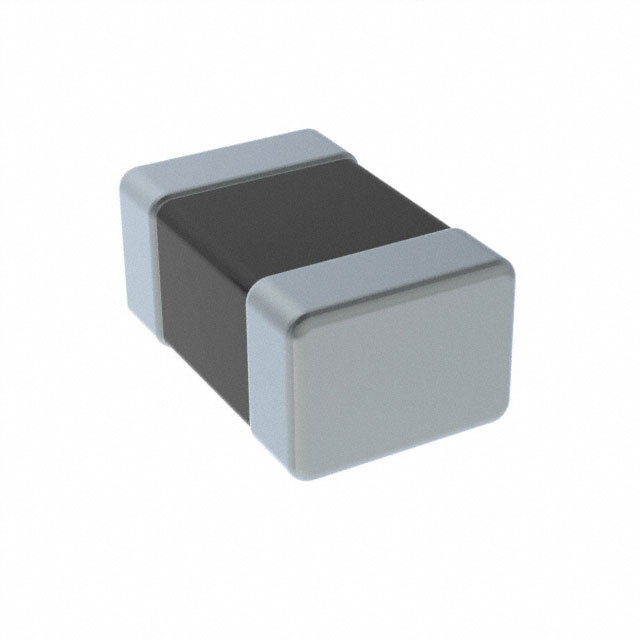

Same model may have multiple batches, images only for reference.
2508056007Y3 FAIR-RITE PRODUCTS
Same model may have multiple batches, images only for reference.

2508056007Y3

Part No 2508056007Y3
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 60 OHM 0805 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Fair-Rite Products Corp.
Series -
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 60 Ohms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 40mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Features -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1377424-2508056007Y3
Ultra Librarian 3D Model Ultra Librarian 2508056007Y3 CAD Model

Description

The 2508056007Y3 is a ferrite bead and chip filter that falls under the category of Filters manufactured by Fair-Rite Products Corp.

  • Category: Filters
  • Status: Active
  • Package: 0805
  • Dimensions: 0.079 inches in length and 0.049 inches in width
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 3A
  • Impedance: 60 Ohms @ 100 MHz
  • Mounting Type: Surface Mount
