Same model may have multiple batches, images only for reference.

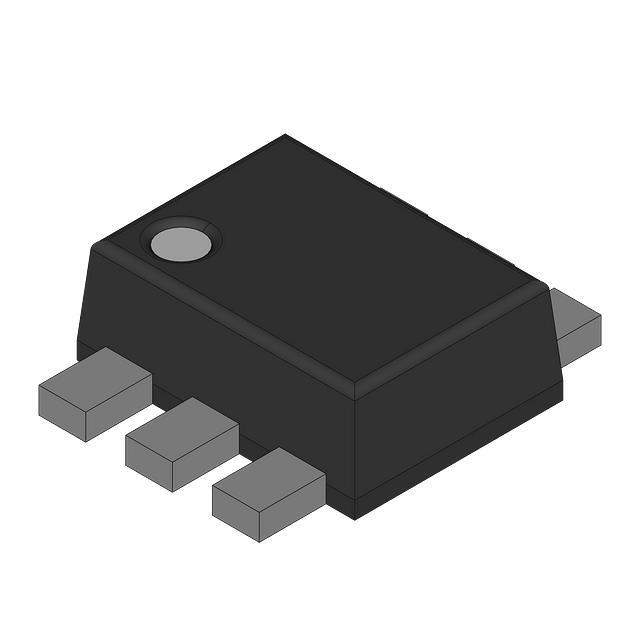

BAS70SV Real Image
Same model may have multiple batches, images only for reference.

BAS70SV

Part No BAS70SV
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 70V SOT563
Datasheet
BAS70SV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Cut Reel
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) (per Diode) 70mA
Voltage - Forward (Vf) (Max) @ If 1V @ 15mA
Reverse Recovery Time (trr) 8ns
Current - Reverse Leakage @ Vr 2.5μA @ 70V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-563F
Win Source Part Number 1022121-BAS70SV
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAS70SV CAD Model

Description

The Schottky Diode is a high-quality electronic component designed to provide reliable and efficient rectification manufactured by Fairchild/ON Semiconductor.

  • Voltage Rating: 70V
  • Average Rectified Current: 70mA
