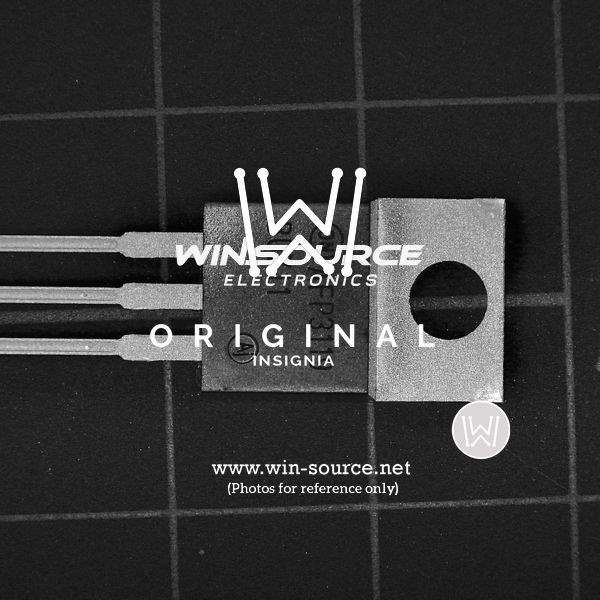

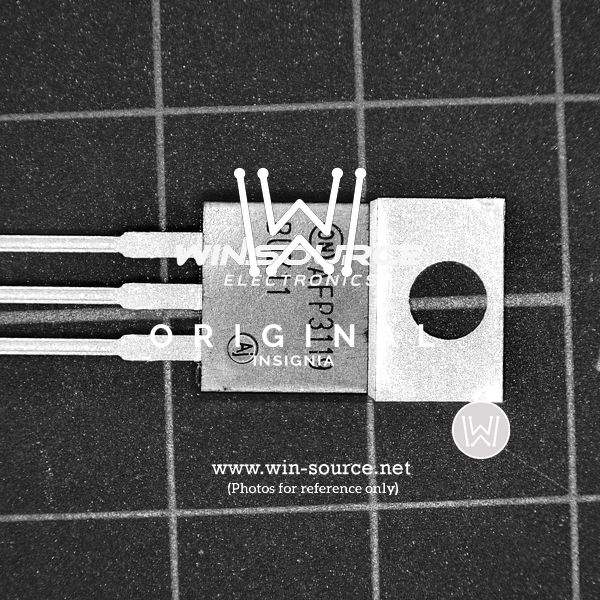

BUZ11_NR4941 Real Image BUZ11_NR4941 Real Image1 BUZ11_NR4941 Real Image2
Same model may have multiple batches, images only for reference.
BUZ11_NR4941 Real Image BUZ11_NR4941 Real Image1 BUZ11_NR4941 Real Image2
BUZ11_NR4941 Real Image BUZ11_NR4941 Real Image1 BUZ11_NR4941 Real Image2
Same model may have multiple batches, images only for reference.

BUZ11_NR4941

Part No BUZ11_NR4941
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 50V 30A TO-220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 50V
Continuous Drain Current at 25°C 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 1mA
Max Input Capacitance 2000pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 75W (Tc)
Maximum Rds On at Id,Vgs 40 mOhm @ 15A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220-3
Dimension TO-220-3
Win Source Part Number 117589-BUZ11_NR4941
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing, Industrial, Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian BUZ11_NR4941 CAD Model

Description

BUZ11_NR4941

The BUZ11_NR4941 is a robust N-channel MOSFET known for its peak performance in various power-based applications. Its low on-state resistance makes it highly efficient for energy-saving designs.

  • Applications:
    • Automotive Electronics
    • Battery Management
    • Solar Inverters
  • Features and Benefits:
    • High efficiency with minimal energy loss
    • High current carrying capability
    • Enhanced heat dissipation
  • Additional Details: This component supports a maximum drain-source voltage of 50V and a drain current of 30A continuously, ideal for higher power projects.
