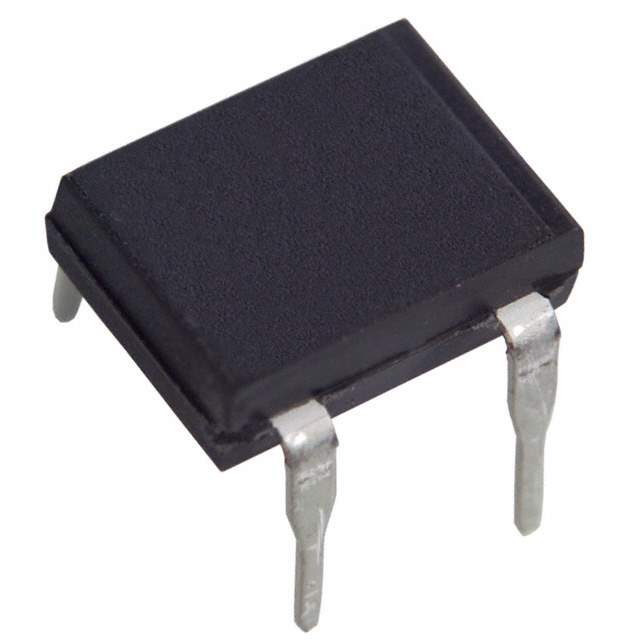

DF04M Real Image
Same model may have multiple batches, images only for reference.

DF04M

Part No DF04M
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description IC RECT BRIDGE 400V 1.5A 4DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 014121-DF04M
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian DF04M CAD Model

Description

DF04M Bridge Rectifier

The DF04M is a high-performance bridge rectifier that excels in converting AC to DC with minimum power loss. It offers engineers flexibility and reliability for a broad range of power supply solutions.

  • Applications:
    • LED lighting systems
    • AC-DC power converters
    • Industrial machinery
    • HVAC systems
  • Features and Benefits:
    • Highly durable against electrical stress
    • Efficient heat dissipation for extended life
    • Easy to mount and integrate
    • Wide operating voltage range
  • Additional Details: With its excellent energy handling capabilities and robustness, the DF04M is suited for industrial and commercial applications demanding high reliability and efficiency.
