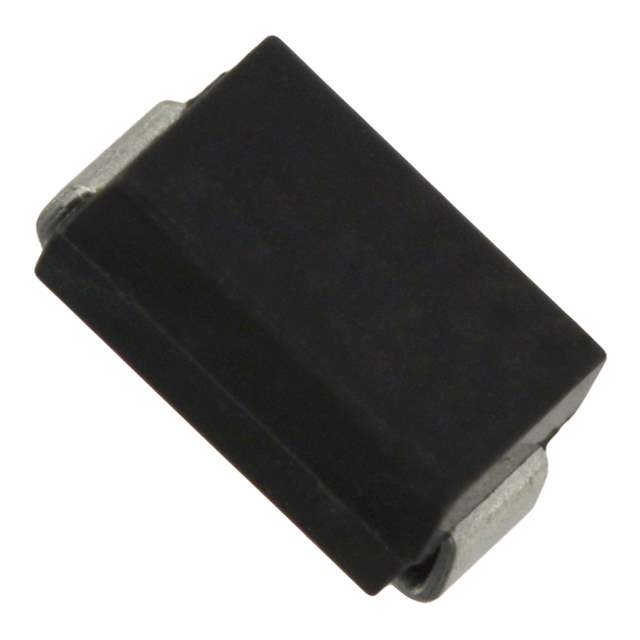

ES1A Real Image
Same model may have multiple batches, images only for reference.

ES1A

Part No ES1A
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 1A SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild Semiconductor
Standard Package 1
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Packaging Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 920mV @ 1A
Speed Fast Recovery =< 500ns > 200mA (Io)
Reverse Recovery Time (trr) 15ns
Current - Reverse Leakage @ Vr 5µA @ 50V
Capacitance @ Vr F 7pF @ 4V 1MHz
Mounting Style SMD/SMT
Package DO-214AC SMA
Manufacturer Device Package SMA (DO-214AC)
Operating Temperature - Junction -55°C ~ 150°C
Catalog Standard Diode
Win Source Part Number 066603-ES1A
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian ES1A CAD Model

Description

ES1A High-Efficiency Rectifier Diode

The ES1A is a high-performance rectifier diode perfect for a variety of electronic applications. It features a fast switching speed and low forward voltage drop, making it ideal for use in your power management projects.

  • Switching Power Supplies
  • Invertors
  • Freewheeling Diode in Converters
  • Polarity Protection Applications

Features and Benefits:

  • High surge current capability
  • Low forward voltage drop
  • High reliability
  • Fast switching speed

Additional Details: The ES1A diode has a reverse voltage of 50V and a forward current of 1A, ensuring high efficiency and performance in demanding applications.
