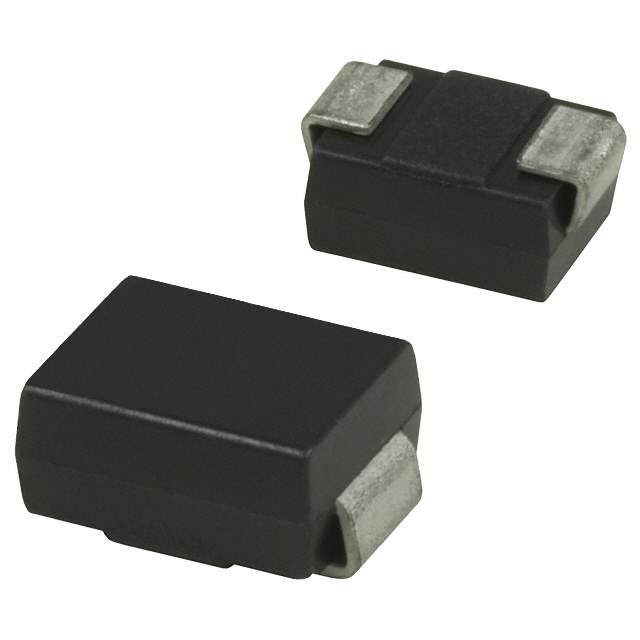

ES2C Real Image
Same model may have multiple batches, images only for reference.

ES2C

Part No ES2C
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 150V 2A DO214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild Semiconductor
Standard Package 1
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Packaging Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 900mV @ 2A
Speed Fast Recovery =< 500ns > 200mA (Io)
Reverse Recovery Time (trr) 20ns
Current - Reverse Leakage @ Vr 10µA @ 150V
Capacitance @ Vr F 18pF @ 4V 1MHz
Mounting Style SMD/SMT
Package DO-214AA SMB
Manufacturer Device Package DO-214AA (SMB)
Operating Temperature - Junction -55°C ~ 150°C
Catalog Standard Diode
Win Source Part Number 066611-ES2C
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ES2C CAD Model

Description

ES2C Fast Recovery Rectifier

Designed to deliver exceptional recovery time and low power loss, the ES2C is suited for sophisticated high-speed switching applications that demand efficiency and reliability.

Features and Benefits

  • Quick recovery time optimizes performance in fast-switching systems.
  • Low forward voltage drop decreases energy consumption.
  • Durable construction withstands high current surges.
  • Space-saving form factor, ideal for compact installations.

Applications

  • Automotive electronics
  • AC-DC power adapters
  • Flyback diodes
  • Telecommunication power systems
