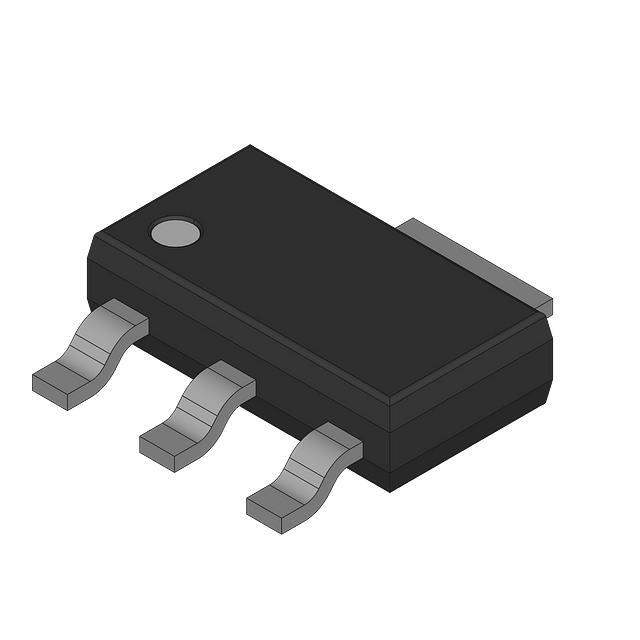

FAN1117AS25X Real Image
Same model may have multiple batches, images only for reference.

FAN1117AS25X

Part No FAN1117AS25X
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 1A SOT223-3
Datasheet
FAN1117AS25X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 18V
Nominal Output Voltage (Min/Fixed) 2.5V
Dropout Voltage-Max 1.2V @ 1A
Output Current 1A
Operating Supply Current 13mA
PSRR 72dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Voltage - Dropout (Typical) 1.1V @ 1A
Mounting SMD (SMT)
Case / Package SOT-223-4
Win Source Part Number 066744-FAN1117AS25X
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian FAN1117AS25X CAD Model

Description

FAN1117AS25X Voltage Regulator

Providing robust voltage regulation, the FAN1117AS25X is a prime solution for maintaining stable power outputs in intricate electronic designs. Its design ensures efficiency in both performance and energy consumption.

Applications

  • Digital Cameras
  • Telecommunication Devices
  • Power Management Systems
  • Embedded Systems

Features and Benefits

  • Fixed Output Voltage: 2.5V
  • Low Dropout Voltage
  • Easy Implementation with SMD Packages
  • Enhanced Overcurrent Protection
  • Efficient Thermal Dissipation

The FAN1117AS25X is engineered for precision, making it a reliable component in maintaining stable power in demanding electronic applications.
