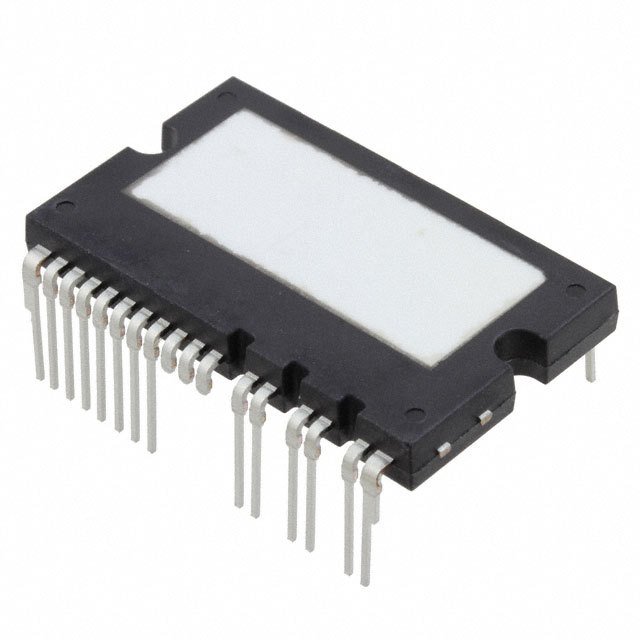

FBA42060 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FBA42060

Part No FBA42060
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description PFC SPM 45 Series for Single-Phase Boost PFC
Datasheet
FBA42060 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PFC SPM 45
Type IGBT
Configuration 1 Phase
Current 20A
Voltage 600V
Voltage - Isolation 2000Vrms
Package 26-PowerDIP Module (1.024", 26.00mm), 23 Leads
Win Source Part Number 1173527-FBA42060
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 72
Family Name FBA42060
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian FBA42060 CAD Model

Description

The FBA42060 is a member of the PFC SPM 45 series of integrated circuits (ICs) that include one-phase IGBT.

  • Package: 26-PowerDIP Module (1.024", 26.00mm), 23 leads
  • Voltage: 600V
  • Manufacturer: Fairchild/ON Semiconductor
  • RoHS-compliant: Yes
  • Estimated EOL Date: 2024
