Same model may have multiple batches, images only for reference.

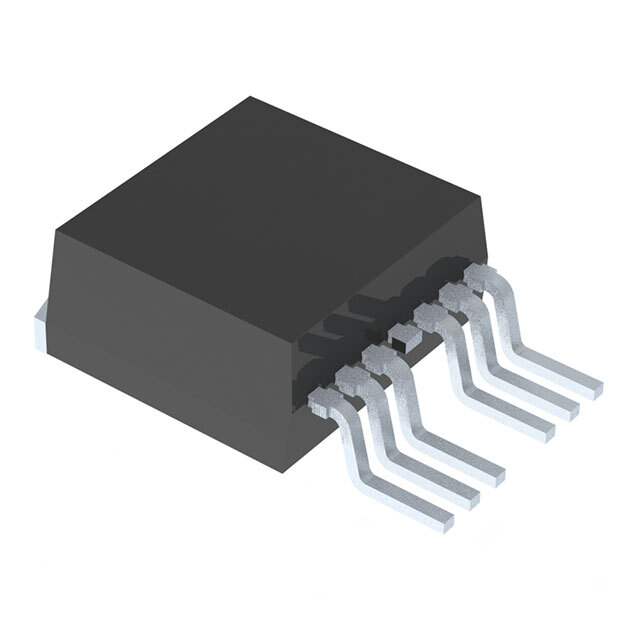

FDB024N04AL7 Real Image
Same model may have multiple batches, images only for reference.

FDB024N04AL7

Part No FDB024N04AL7
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V D2PAK-7
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 109nC @ 10V
Max Input Capacitance 7300pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 214W (Tc)
Maximum Rds On at Id,Vgs 2.4 mOhm @ 80A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package D2PAK (TO-263)
Dimension TO-263-7, D2Pak (6 Leads + Tab)
Win Source Part Number 001073-FDB024N04AL7
Popularity Medium
Supply and Demand Status Balance
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian FDB024N04AL7 CAD Model

Description

FDB024N04AL7

The FDB024N04AL7 is engineered for superior efficiency and durability, catering to various electronic systems that require precise control and care.

Applications

  • Embedded Systems
  • Control Units
  • Power Modules
  • Measurement Instruments

Features and Benefits

  • High Durability
  • Efficient Power Consumption
  • Reduced Size for Compact Spaces
  • Stable Thermal Properties

Choose the FDB024N04AL7 for its reliable performance in critical applications where precision and consistency are crucial.
