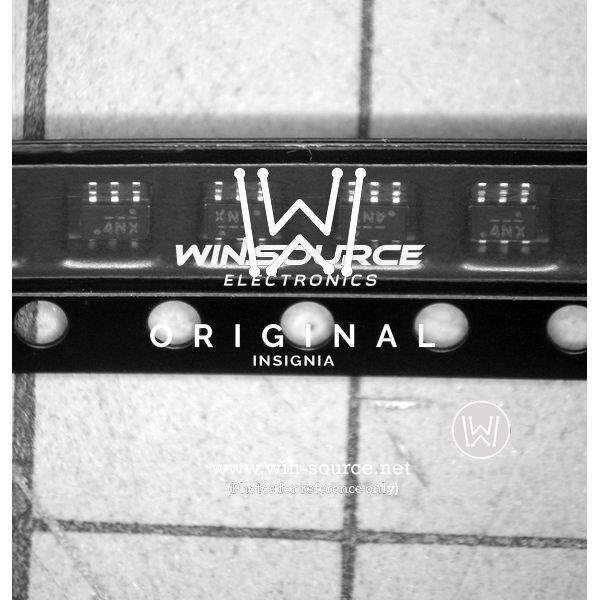

FDG1024NZ Real Image FDG1024NZ real image15433
Same model may have multiple batches, images only for reference.
FDG1024NZ Real Image FDG1024NZ real image15433
FDG1024NZ Real Image FDG1024NZ real image15433
Same model may have multiple batches, images only for reference.

FDG1024NZ

Part No FDG1024NZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 20V 1.2A SC70-6
Datasheet
FDG1024NZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1.2A
Maximum Rds On at Id,Vgs 175 mOhm @ 1.2A, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 2.6nC @ 4.5V
Max Input Capacitance 150pF @ 10V
Maximum Power Dissipation 300mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-6
Win Source Part Number 1038139-FDG1024NZ
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDG1024NZ CAD Model

Description

The Fairchild/ON Semiconductor 2 N-Channel (Dual) FET is a perfect fit for your discrete semiconductor products.

  • FET Type: 2 N-Channel (Dual)
  • Gate Feature: Logic Level Gate
  • Case/Package: SC-70-6
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Maximum Power Dissipation: 300mW
  • Continuous Drain Current @ 25°C: 1.2A
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Maximum Input Capacitance: 150pF @ 10V
  • Maximum Rds On @ Id,Vgs: 175 mOhm @ 1.2A, 4.5V
  • Alternative Parts: SI1988DH-T1-E3, PJT7800_R2_00001, and PJT7800_R1_00001
  • Packaging: Reel-TR
  • Package Quantity: 3k pcs
