The Fairchild/ON Semiconductor FDMA8051L is an N-channel MOSFET transistor.

• Maximum Power Dissipation: 2.4W (Ta)

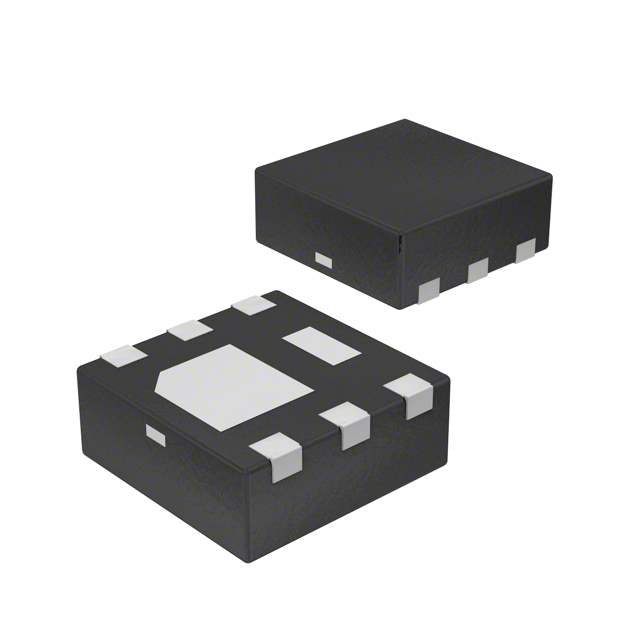

• Package: 6-MicroFET (2x2) with exposed pad
• Drain-Source Breakdown Voltage: 40V
• Continuous Drain Current: 10A (Tc) @ 25°C
• Maximum Rds On: 14 mOhm @ 10A, 10V
• Drive Voltage: 4.5V (Max Rds On), 10V (Min Rds On)
• Gate-Source Threshold Voltage: 3V @ 250μA
• Maximum Gate Charge: 20nC @ 10V
• Maximum Input Capacitance: 1260pF @ 20V
• Maximum Gate-Source Voltage: ±20V
• Operating Temperature: -55°C to 150°C (TJ)
