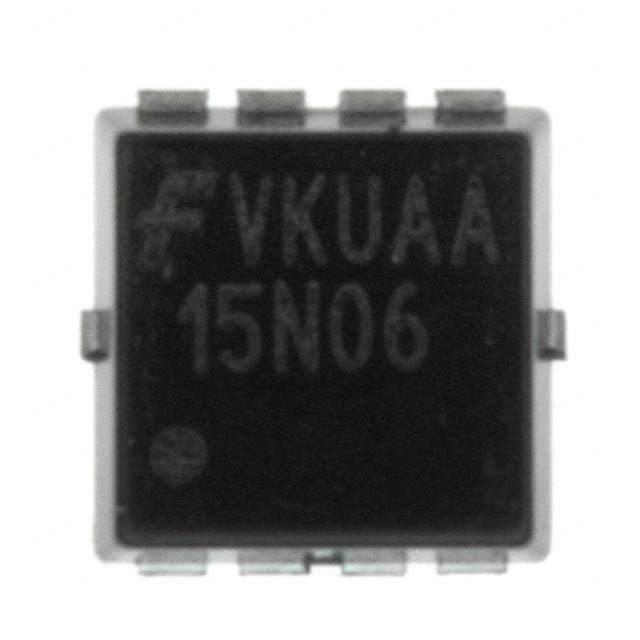

The FDMC15N06 is a MOSFET technology power transistor from Fairchild/ON Semiconductor.

• Continuous Drain Current: 2.4A (Ta) and 15A (Tc)
• Drive Voltage (max Rds on, min Rds on): 10V
• Package: 8-PowerWDFN
• Mounting: SMD
• Manufacturer Homepage: www.fairchildsemi.com
• Channel Type: N
• Drain Source Voltage: 55V
• Vgs(th) (maximum) @ Id: 4V @ 250μA
• Gate Charge (Qg) (maximum) @ Vgs: 11.5nC @ 10V
• Input Capacitance (Ciss) (maximum) @ Vds: 350pF @ 25V
• Vgs (maximum): ±20V
• Power Dissipation (maximum): 2.3W (Ta), 35W (Tc)
• Rds On (maximum) @ Id, Vgs: 900 mOhm @ 15A, 10V
• Introduction Date: September 14, 2004
• ECCN: EAR99
• Country of Origin: Thailand
• Estimated EOL Date: 2024
• Halogen-Free: Compliant
• Popularity: Medium
• Supply and Demand Status: Balance
