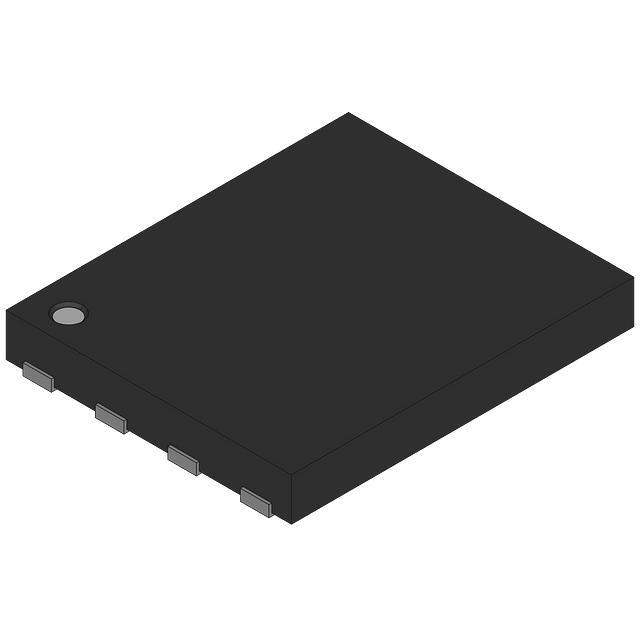

The Fairchild/ON Semiconductor 040260-FDMC3300NZA is a dual 2 N-channel FET that features a logic level gate. It is designed for use in discrete semiconductor products and is obsolete (EOL).

• Mounting Style: Surface Mount Device (SMD)
• Maximum Power Dissipation: 2.1W
• Temperature Range: -55°C to 150°C (TJ)
• Case/Package Size: 8-Power33 (3x3)
• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current (at 25°C): 8A
• Gate-Source Threshold Voltage: 1.5V @ 250μA
• Maximum Gate Charge: 12nC @ 4.5V
• Maximum Input Capacitance: 815pF @ 10V
• Maximum Rds On (at Id,Vgs): 26 mOhm @ 8A, 4.5V
• Popularity: Medium
• Supply and Demand: Balanced
