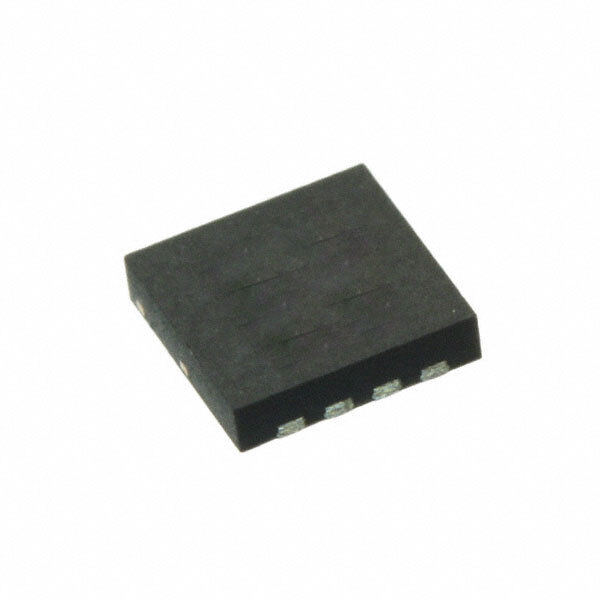

FDMC510P Fairchild/ON Semiconductor FDMC510P Real Image FDMC510P Real Image FDMC510P real image 2 FDMC510P label picture FDMC510P label picture 2
Same model may have multiple batches, images only for reference.
FDMC510P Fairchild/ON Semiconductor FDMC510P Real Image FDMC510P Real Image FDMC510P real image 2 FDMC510P label picture FDMC510P label picture 2
FDMC510P Fairchild/ON Semiconductor FDMC510P Real Image FDMC510P Real Image FDMC510P real image 2 FDMC510P label picture FDMC510P label picture 2
Same model may have multiple batches, images only for reference.

FDMC510P

Part No FDMC510P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET P-CH Si 20V 12A 8-Pin WDFN EP T/R / MOSFET P-CH 20V 18A 8-MLP
Datasheet
FDMC510P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 12A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 116nC @ 4.5V
Max Input Capacitance 7860pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 2.3W (Ta), 41W (Tc)
Maximum Rds On at Id,Vgs 8 mOhm @ 12A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-MLP (3.3x3.3)
Dimension 8-PowerWDFN
Win Source Part Number 016026-FDMC510P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Family Name FDMC510P
Introduction Date July 28, 2006
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FDMC510P CAD Model

Description

The Fairchild/ON Semiconductor 016026-FDMC510P is a P-channel MOSFET.

  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current (at 25°C): 12A (Ta), 18A (Tc)
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Maximum Gate Charge: 116nC @ 4.5V
  • Maximum Input Capacitance: 7860pF @ 10V
  • Supply and Demand: Sufficient
  • Package Quantity: 3k pcs
