Same model may have multiple batches, images only for reference.

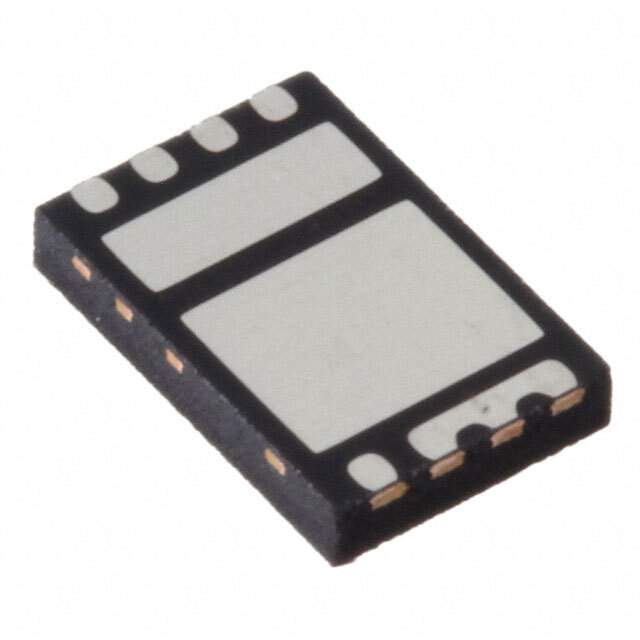

FDML7610S Real Image
Same model may have multiple batches, images only for reference.

FDML7610S

Part No FDML7610S
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description Dual N-Channel PowerTrench® MOSFET N-Channel: 30 V, 30 A, 7.5 mΩ N-Channel: 30 V, 28 A, 4.2 mΩ
Datasheet
FDML7610S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench
Packaging Reel - TR
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 12A, 17A
Rds On (Maximum) @ Id, Vgs 7.5 mOhm @ 12A, 10V
Vgs(th) (Maximum) @ Id 3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 28nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1750pF @ 15V
Power - Max 800mW, 900mW
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 8-PowerWDFN
Manufacturer Package 8-MLP (3x4.5)
Win Source Part Number 1173835-FDML7610S
Manufacturer Homepage www.fairchildsemi.com
Family Name FDML7610S
Introduction Date January 28, 2010
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDML7610S CAD Model

Description

The FDML7610S is a dual N-channel MOSFET manufactured by Fairchild/ON Semiconductor.

  • Manufacturer: Fairchild/ON Semiconductor
  • Supply and Demand: Balanced
  • Type: PowerTrench MOSFET
  • Maximum Voltage: 30V
  • Maximum Current: 17A
  • Gate Type: Logic level gate MOSFET
  • Package: MLP-8
