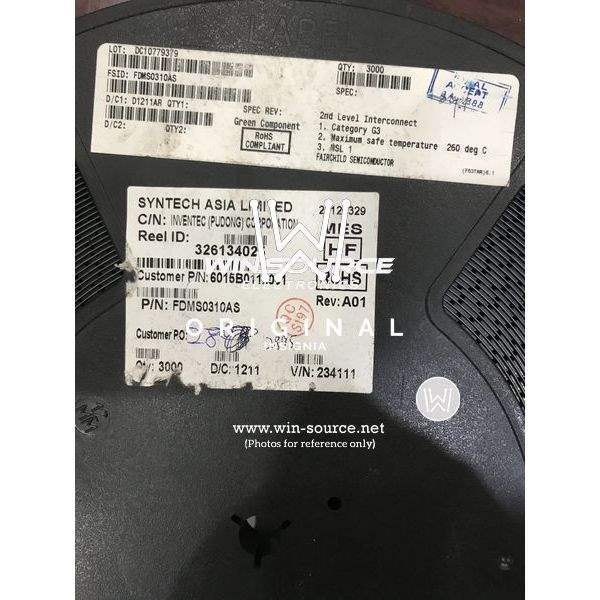

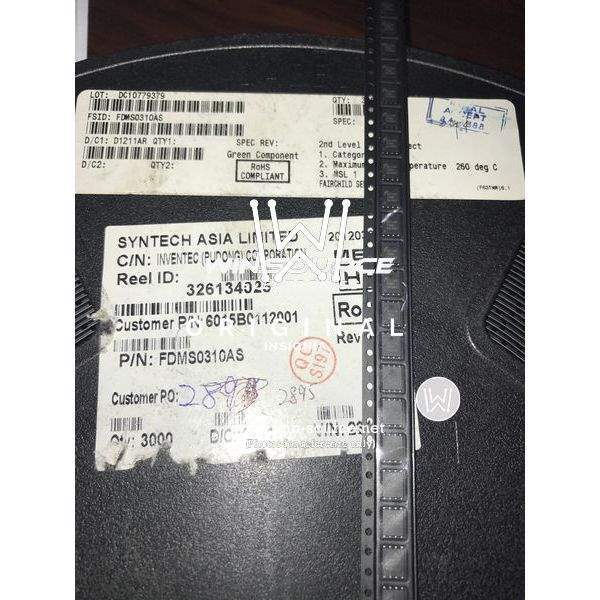

FDMS0310AS Fairchild/ON Semiconductor FDMS0310AS Real Image FDMS0310AS label picture 2 FDMS0310AS real image
Same model may have multiple batches, images only for reference.
FDMS0310AS Fairchild/ON Semiconductor FDMS0310AS Real Image FDMS0310AS label picture 2 FDMS0310AS real image
FDMS0310AS Fairchild/ON Semiconductor FDMS0310AS Real Image FDMS0310AS label picture 2 FDMS0310AS real image
Same model may have multiple batches, images only for reference.

FDMS0310AS

Part No FDMS0310AS
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH Si 30V 19A 8-Pin PQFN EP T/R / MOSFET N-CH 30V 19A PT8
Datasheet
FDMS0310AS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 19A (Ta), 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 1mA
Max Gate Charge 37nC @ 10V
Max Input Capacitance 2280pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 41W (Tc)
Maximum Rds On at Id,Vgs 4.3 mOhm @ 19A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PQFN (5x6), Power56
Dimension 8-PowerTDFN
Win Source Part Number 016056-FDMS0310AS
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FDMS0310AS
Introduction Date May 20, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FDMS0310AS CAD Model

Description

The Fairchild/ON Semiconductor 016056-FDMS0310AS is an N-channel MOSFET that is designed for surface mount technology.

  • Supply and Demand: Limited
  • Power Dissipation (Max): 2.5W (Ta), 41W (Tc)
  • Drain-Source Breakdown Voltage (Max): 30V
  • Continuous Drain Current (Max): 19A (Ta), 22A (Tc)
  • Gate Charge (Max): 37nC @ 10V
