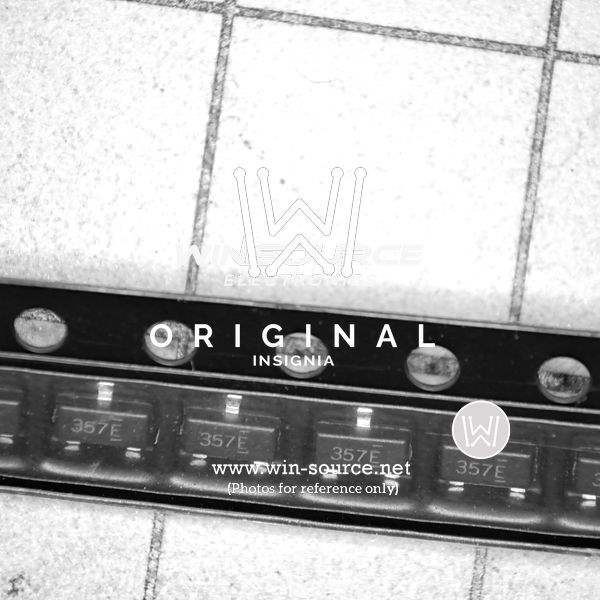

Same model may have multiple batches, images only for reference.

FDN357N

Name: FDN357N
Brand: Fairchild/ON Semiconductor
SKU: 129565
Availability: InStock
Rating: 4.85 (618 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FDN357N
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 1.9A SSOT3
Datasheet	FDN357N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	1.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2V @ 250μA
Max Gate Charge	5.9nC @ 5V
Max Input Capacitance	235pF @ 10V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	500mW (Ta)
Maximum Rds On at Id,Vgs	60 mOhm @ 2.2A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	SuperSOT-3
Dimension	TO-236-3, SC-59, SOT-23-3
Win Source Part Number	016109-FDN357N
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Power Management, Portable Devices, Computers & Computer Peripherals
Family Name	FDN357N
Introduction Date	April 29, 1998
ECCN	EAR99
Country of Origin	Israel, Philippines
Halogen Free	Compliant
Estimated EOL Date	2024
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDN357N CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FDN357N is an N-channel MOSFET with a drain-source breakdown voltage of 30V and a continuous drain current of 1.9A at 25°C.

Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 1.9A @ 25°C
Maximum Power Dissipation: 500mW (Ta)
Maximum Rds On: 60 mOhm @ 2.2A, 10V
Gate-Source Threshold Voltage: 2V @ 250μA
Maximum Gate Charge: 5.9nC @ 5V
Package: SuperSOT-3
Popularity: High
Supply and Demand: Sufficient
Quantity: 3k pcs per package
