The MCH6663-TL-H is a high-performance, P-Channel MOSFET developed by ON Semiconductor, a leading provider of semiconductor-based solutions. This compact and efficient power management component is designed to meet the rigorous demands of modern electronic circuits, offering energy-efficient power conversion and control in a small form factor.

Key Features

• Device Type: P-Channel MOSFET
• Configuration: Single
• Drain-Source Voltage (V<sub>DS): -30V
• Continuous Drain Current (I<sub>D): -6A
• Power Dissipation (P<sub>D): 1.2W
• Gate-Source Voltage (V<sub>GS): ±20V
• Operating Temperature Range: -55°C to +150°C

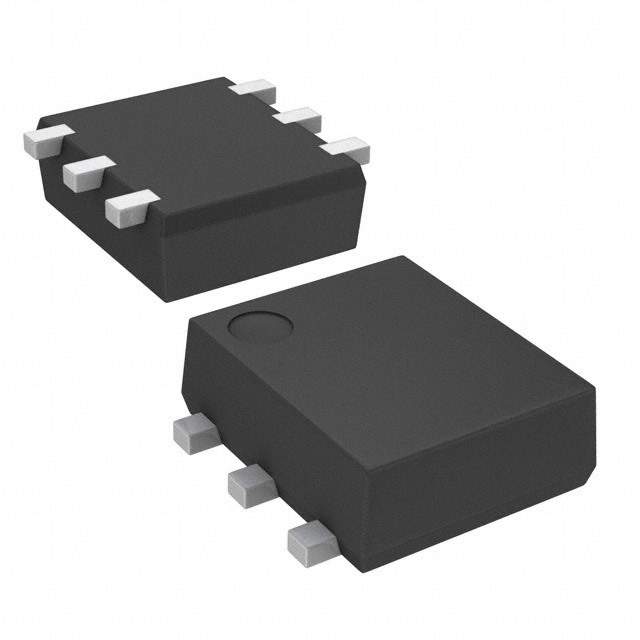

• Package / Case: SOT-428

Applications

The MCH6663-TL-H is suitable for a wide range of applications due to its high-speed switching capabilities and low on-resistance. It is particularly well-suited for:

• Power Management Functions
• DC/DC Converters
• Load Switching
• Battery Management Systems
• Motor Drive Controllers

Benefits

The MCH6663-TL-H MOSFET offers numerous benefits for designers and engineers, including:

• High Efficiency: Minimizes power loss and heat generation with its low on-resistance.
• Compact Size: SOT-428 package allows for high-density mounting, ideal for space-constrained applications.
• Robust Performance: Capable of withstanding harsh operating conditions with its wide temperature range.
• Improved Power Density: High continuous current rating in a small footprint enhances power density.

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The MCH6663-TL-H MOSFET is manufactured with rigorous standards, ensuring reliable performance for critical electronic systems. Its robust construction and proven design make it a preferred choice for engineers looking to incorporate a dependable power management solution in their designs.
