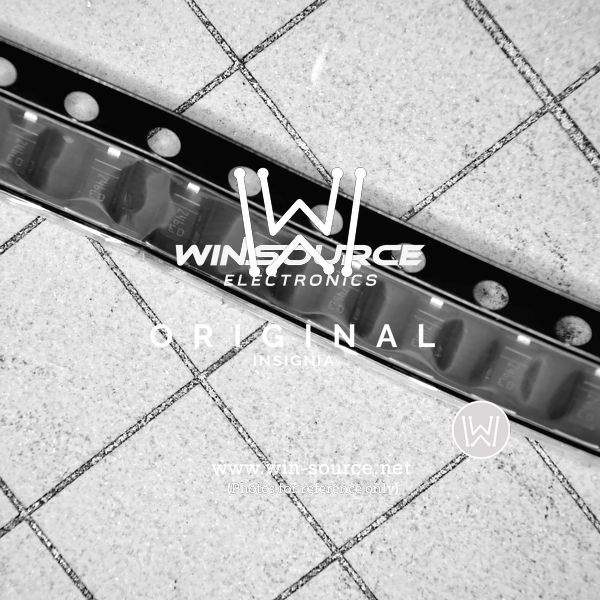

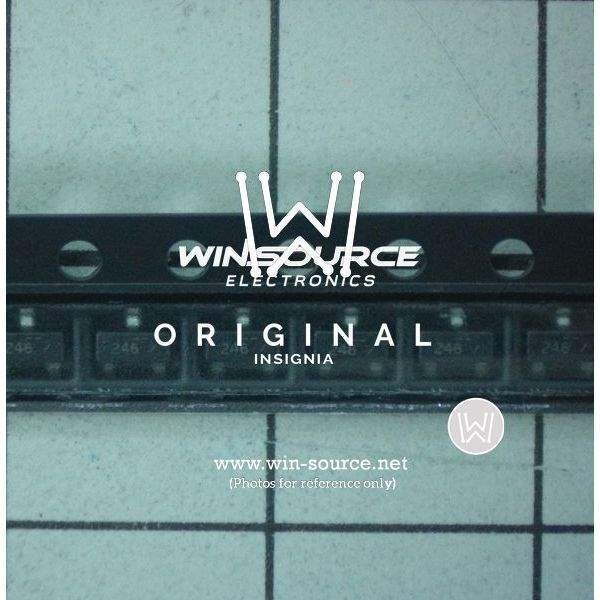

FDN86246 Fairchild/ON Semiconductor FDN86246 real image FDN86246 Real Image
Same model may have multiple batches, images only for reference.
FDN86246 Fairchild/ON Semiconductor FDN86246 real image FDN86246 Real Image
FDN86246 Fairchild/ON Semiconductor FDN86246 real image FDN86246 Real Image
Same model may have multiple batches, images only for reference.

FDN86246

Part No FDN86246
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 150V 1.6A 3SSOT
Datasheet
FDN86246 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 150V
Continuous Drain Current at 25°C 1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 5nC @ 10V
Max Input Capacitance 225pF @ 75V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1.5W (Ta)
Maximum Rds On at Id,Vgs 261 mOhm @ 1.6A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SuperSOT-3
Dimension TO-236-3, SC-59, SOT-23-3
Win Source Part Number 1038294-FDN86246
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDN86246 CAD Model

Description

The Fairchild/ON Semiconductor 427207 is an N-channel MOSFET with a drain-source breakdown voltage of 150V.

  • Drain-Source Breakdown Voltage: 150V
  • Maximum Rds On @ Id,Vgs: 261 mOhm @ 1.6A, 10V
  • Continuous Forward Current-Max: 1.6A
  • Mounting Type: SMD (SMT)
  • Package: SuperSOT-3
  • Maximum Gate-Source Voltage: ±20V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Supply and Demand: Limited
  • Quantity per Package: 3k pcs
