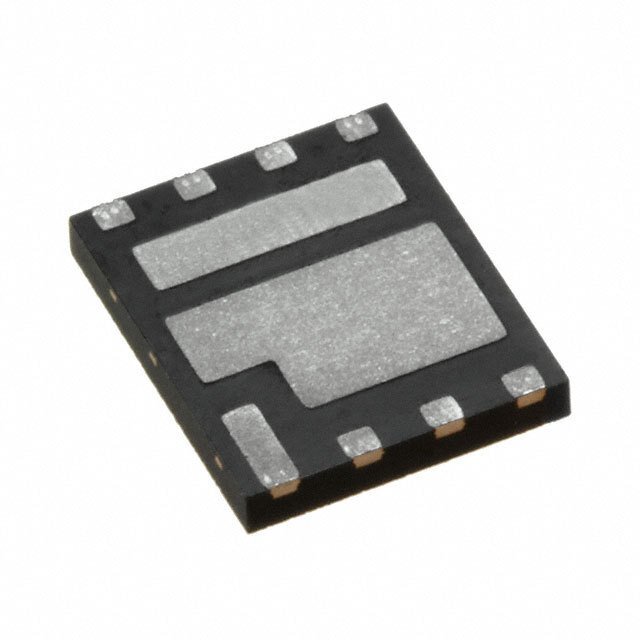

FDPC8014S Fairchild/ON Semiconductor FDPC8014S Real Image
Same model may have multiple batches, images only for reference.
FDPC8014S Fairchild/ON Semiconductor FDPC8014S Real Image
FDPC8014S Fairchild/ON Semiconductor FDPC8014S Real Image
Same model may have multiple batches, images only for reference.

FDPC8014S

Part No FDPC8014S
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 25V 8PWRCLIP
Datasheet
FDPC8014S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual) Asymmetrical
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 20A, 41A
Maximum Rds On at Id,Vgs 3.8 mOhm @ 20A, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 35nC @ 10V
Max Input Capacitance 2375pF @ 13V
Maximum Power Dissipation 2.1W, 2.3W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Power Clip 56
Win Source Part Number 016121-FDPC8014S
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDPC8014S CAD Model

Description

The Fairchild/ON Semiconductor FDPC8014S is a 2 N-Channel (Dual) Asymmetrical FET with a Logic Level Gate.

  • Power Dissipation (Max): 2.1W, 2.3W
  • Drain-Source Breakdown Voltage: 25V
  • Continuous Drain Current (25°C): 20A, 41A
  • Gate-Source Threshold Voltage: 2.5V @ 250μA
  • Gate Charge (Max): 35nC @ 10V
  • Input Capacitance (Max): 2375pF @ 13V
  • Rds On (Max): 3.8 mOhm @ 20A, 10V
  • Supply and Demand: Limited
  • Package Quantity: 3k pcs
