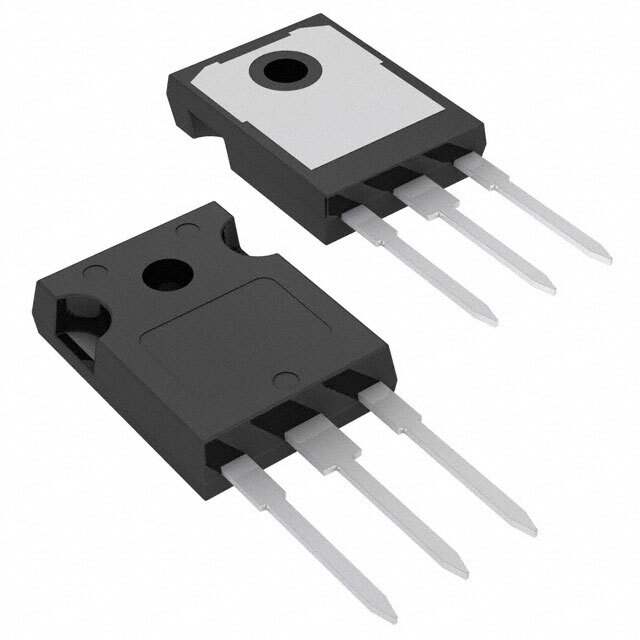

FGH40T120SMD_F155

Part No FGH40T120SMD_F155
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1200V 80A 555W TO247-3 / Trans IGBT Chip N-CH 1200V 80A 555000mW 3-Pin(3+Tab) TO-247 Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
IGBT Type Trench Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 80A
Pulsed Collector Current 160A
Collector-emitter saturation voltage(Max) 2.4V @ 15V, 40A
Maximum Power Dissipation 555W
Total Switching Energy(Ets) 2.7mJ (on), 1.1mJ (off)
Input Type Standard
Gate Charge 370nC
Turn-on and Turn-off delay time 40ns/475ns
Testing Conditions 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) 65ns
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-247
Win Source Part Number 001174-FGH40T120SMD_F155
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name FGH40T120SMD
Introduction Date July 01, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian FGH40T120SMD_F155 CAD Model

Description

The Fairchild/ON Semiconductor 001174-FGH40T120SMD_F155 is a trench field stop IGBT type discrete semiconductor product. The supply and demand status is limited.

  • Current Collector (Max): 80A
  • Collector-Emitter Breakdown Voltage (Max): 1200V
  • Power Dissipation (Max): 555W
  • Pulsed Collector Current: 160A
  • Mounting: Through Hole
  • Package: TO-247
  • Operating Temperature: -55°C to 175°C
