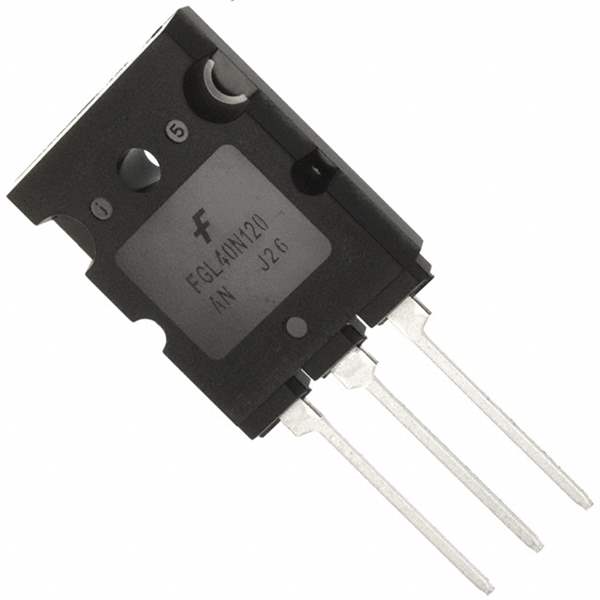

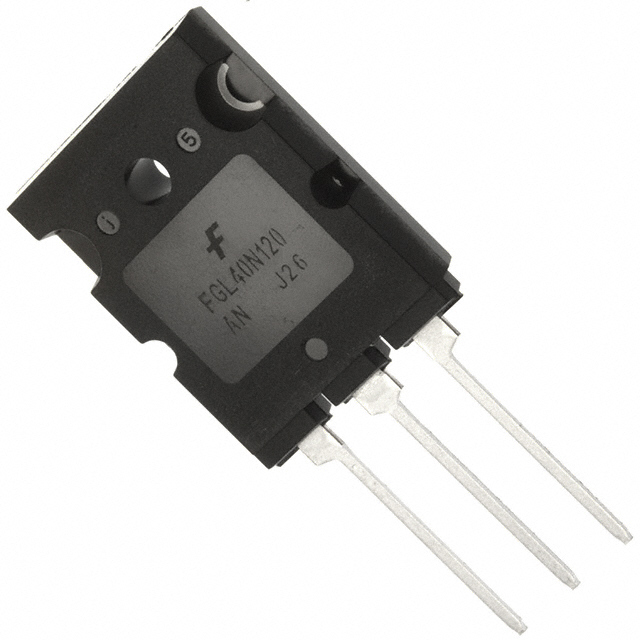

FGL40N120ANTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FGL40N120ANTU

Part No FGL40N120ANTU
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1200V 64A 500W TO264
Datasheet
FGL40N120ANTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
IGBT Type NPT
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 64A
Pulsed Collector Current 160A
Collector-emitter saturation voltage(Max) 3.2V @ 15V, 40A
Maximum Power Dissipation 500W
Total Switching Energy(Ets) 2.3mJ (on), 1.1mJ (off)
Input Type Standard
Gate Charge 220nC
Turn-on and Turn-off delay time 15ns/110ns
Testing Conditions 600V, 40A, 5 Ohm, 15V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-264
Win Source Part Number 204184-FGL40N120ANTU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FGL40N120ANTU CAD Model

Description

The Fairchild/ON Semiconductor FGL40N120ANTU is an IGBT type electronic component that is designed for use in various electronic devices. It is packaged in a TO-264 package and has a NPT IGBT type.

  • Maximum current collector: 64A
  • VCEO maximum collector-emitter breakdown voltage: 1200V
  • Collector-emitter saturation voltage(Max): 3.2V @ 15V, 40A
  • Total switching energy(Ets): 2.3mJ (on), 1.1mJ (off)
  • Turn-on and turn-off delay time: 15ns/110ns
