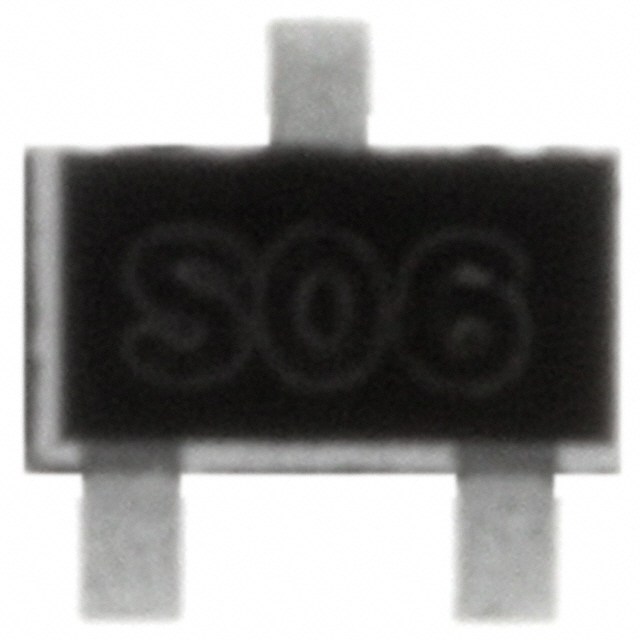

Same model may have multiple batches, images only for reference.
FJY3006R Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FJY3006R

Part No FJY3006R
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 200MW SOT523F
Datasheet
FJY3006R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 10k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 68 @ 5mA, 5V
Max Vce (sat) 300mV @ 500μA, 10mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 250MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-523F
Win Source Part Number 1038968-FJY3006R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FJY3006R CAD Model

Description

The Fairchild/ON Semiconductor FJY3006R is a pre-biased NPN transistor.

  • Maximum Current Rating: 100mA
  • Maximum Voltage Rating: 50V
  • Application: suitable for use in a wide range of applications, including audio amplifiers, switching circuits, and voltage regulators
  • Package: SOT-523F package, making it easy to mount and use in your circuit
  • Popularity: medium
  • Supply and Demand: sufficient
