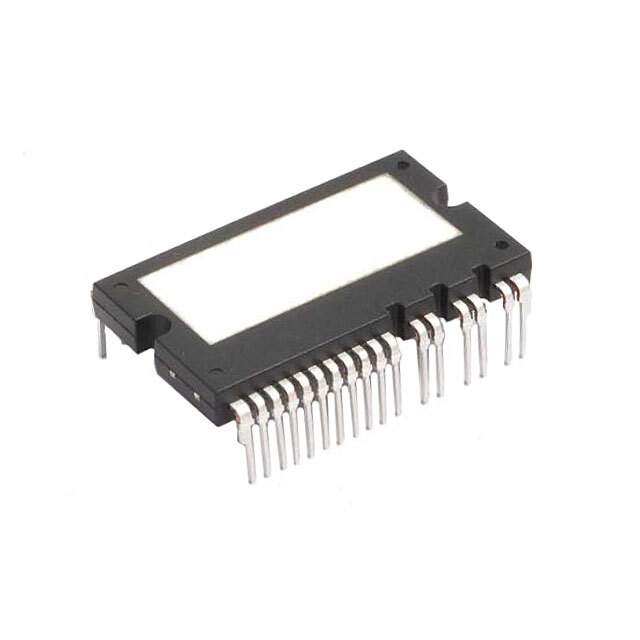

Same model may have multiple batches, images only for reference.
FNA40860B2 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FNA40860B2

Part No FNA40860B2
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description IGBT 3PH 600V 8A MODULE
Datasheet
FNA40860B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Active
Type IGBT
Configuration 3 Phase
Current 8A
Voltage 600V
Isolation Voltage 2000Vrms
Dimension 26-PowerDIP Module (1.024", 26.00mm)
Win Source Part Number 1039256-FNA40860B2
Popularity Medium
Supply and Demand Status Limited
Quantity per package 72
Ultra Librarian 3D Model Ultra Librarian FNA40860B2 CAD Model

Description

The Fairchild/ON Semiconductor FNA40860B2 is an IGBT designed for use in 3 phase configurations.

  • Voltage Rating: 600V
  • Current Rating: 8A
  • Isolation Voltage: 2000Vrms
  • Package: 26-PowerDIP
  • Quantity per Package: 72 pieces
