FPF2495UCX Real Image FPF2495UCX real image15467
Same model may have multiple batches, images only for reference.

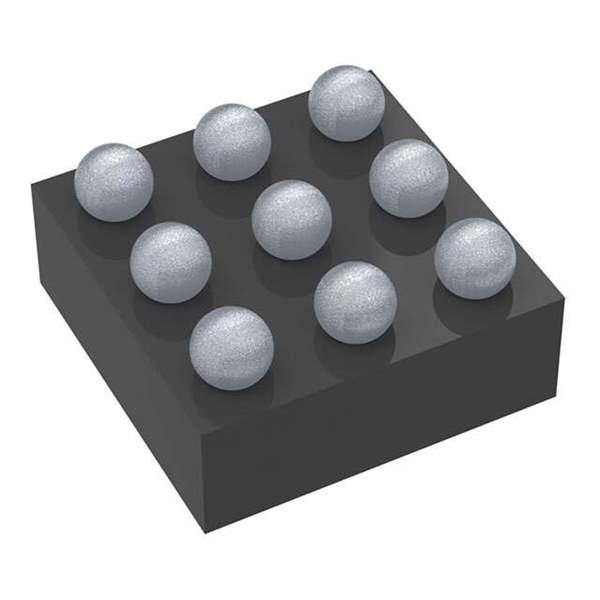

FPF2495UCX Real Image FPF2495UCX real image15467
FPF2495UCX Real Image FPF2495UCX real image15467
Same model may have multiple batches, images only for reference.

FPF2495UCX

Part No FPF2495UCX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC LOAD SWITCH 28 9WLCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 1
Voltage - Load 2.5 V to 5.5 V
Supply Voltage - Operating Not Required
Current - Output (Max) 2A
Rds On (Typ) 70 mOhm
Input Type Non-Inverting
Features Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 9-WLCSP (1.21x1.21)
Win Source Part Number 1039522-FPF2495UCX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FPF2495UCX CAD Model

Description

The FPF2495UCX is an integrated circuit manufactured by Fairchild/ON Semiconductor with Win Source Part Number 1039522.

  • Manufacturer: Fairchild/ON Semiconductor
  • Win Source Part Number: 1039522
  • Slew Rate Controlled: Yes
  • Status Flag: Yes
  • Input Type: Non-Inverting
  • Switch Type: General Purpose
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage, Reverse Current, UVLO
  • Outputs: 1
  • Output Current: 2A (Max)
  • Voltage Load: 2.5V to 5.5V
  • Rds On (Typ): 70 mOhm
  • Supply and Demand: In balance
  • Quantity per Package: 3k pcs
