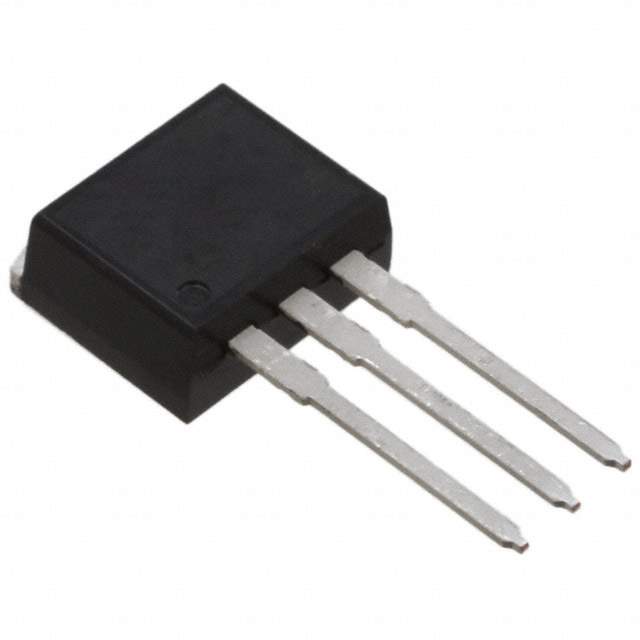

The FQI17P06 is a P-Channel MOSFET from Fairchild Semiconductor (now ON Semiconductor) designed for power management applications. This MOSFET offers low on-state resistance and fast switching speeds, making it suitable for load switching, power inverters, and other power control circuits. Its P-Channel configuration allows for easy implementation in high-side switching applications.

Applications

• Load Switching: Used for turning on and off power to various loads in electronic systems.
• Power Inverters: Employed in DC-AC power inverters to convert DC voltage to AC voltage.
• Battery Management Systems: Plays a role in battery charging and discharging circuits in portable devices.
• Power Distribution: Used in power distribution circuits for efficient power routing.
• DC-DC Converters: Utilized in various DC-DC converter topologies for voltage regulation, especially where a P-Channel MOSFET simplifies the high-side drive.

Features

• Low On-Resistance: Features a low RDS(on) to minimize conduction losses and improve efficiency.
• Fast Switching Speed: Offers fast switching characteristics for reduced switching losses.
• P-Channel Configuration: P-Channel MOSFET for high-side switching applications.
• Low Gate Charge: Low gate charge reduces drive power requirements and improves switching performance.
• TO-220 Package: Housed in a TO-220 package for efficient heat dissipation.

Benefits

• Improved Efficiency: Low on-resistance minimizes power dissipation, leading to higher energy efficiency.
• Reduced Switching Losses: Fast switching speed minimizes switching losses, further improving overall system efficiency.
• Simplified Design: P-Channel configuration simplifies high-side switching implementation.
• Reduced Gate Drive Requirements: Low gate charge reduces the requirements of the gate drive circuitry.
• Efficient Heat Dissipation: TO-220 package allows for efficient thermal management.

Additional Details

The FQI17P06 has a continuous drain current (Id) rating of -17A. The gate-source voltage (Vgs) is rated at ±20V. The MOSFET has a typical gate charge (Qg) of around 30 nC. The device's RDS(on) is typically around 0.1 ohms at Vgs = -10V. The operating junction temperature ranges from -55°C to +175°C. This MOSFET is particularly useful in applications where a high-side switch is needed and where simplifying the gate drive circuitry is important. The P-Channel configuration allows the MOSFET to be turned on with a gate voltage that is lower than the source voltage, which can be easily achieved with a simple pull-up resistor. The TO-220 package provides efficient heat dissipation, ensuring reliable performance in demanding thermal conditions.
