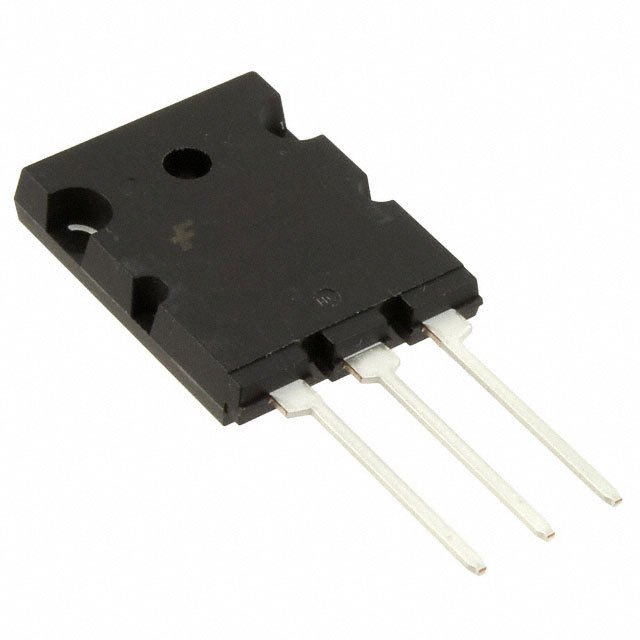

FQL40N50F Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FQL40N50F

Part No FQL40N50F
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 40A TO-264
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 200nC @ 10V
Max Input Capacitance 7500pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 460W (Tc)
Maximum Rds On at Id,Vgs 110 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-264
Dimension TO-264-3, TO-264AA
Win Source Part Number 126243-FQL40N50F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 375
Ultra Librarian 3D Model Ultra Librarian FQL40N50F CAD Model

Description

The FQL40N50F is an N-channel MOSFET transistor manufactured by Fairchild/ON Semiconductor.

  • Channel Type: N-Channel
  • Continuous Drain Current (25°C): 40A (Tc)
  • Rds On (Max): 110 mOhm @ 20A, 10V
  • Drive Voltage: 10V
  • Gate-Source Threshold Voltage: 5V @ 250μA
  • Gate-Source Voltage (Max): ±30V
  • Input Capacitance (Max): 7500pF @ 25V
  • Package: TO-264
  • Supply and Demand: Balanced
  • Popularity: Medium
