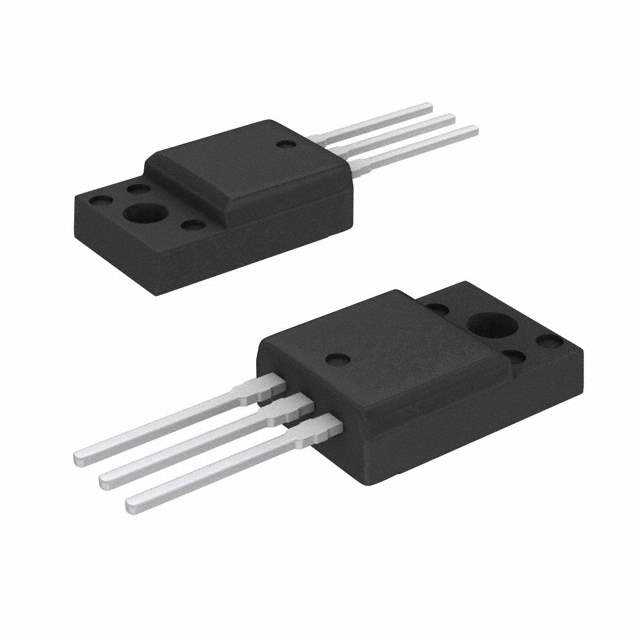

FQPF30N06L Real Image
Same model may have multiple batches, images only for reference.

FQPF30N06L

Part No FQPF30N06L
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 22.5A TO-220F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 22.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 20nC @ 5V
Max Input Capacitance 1040pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 38W (Tc)
Maximum Rds On at Id,Vgs 35 mOhm @ 11.3A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-220F
Dimension TO-220-3 Full Pack
Win Source Part Number 016464-FQPF30N06L
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FQPF30N06L CAD Model

Description

The Fairchild/ON Semiconductor FQPF30N06L is an N-Channel MOSFET designed for use in Discrete Semiconductor Products.

  • Package: TO-220F
  • Temperature Range: -55°C to 175°C (TJ)
  • Power Dissipation: 38W (Tc)
  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 22.5A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.5V @ 250μA
  • Max Gate Charge: 20nC @ 5V
  • Max Input Capacitance: 1040pF @ 25V
  • Max Rds On: 35 mOhm @ 11.3A, 10V
  • Supply: Limited
  • Quantity per Package: 1k pcs
