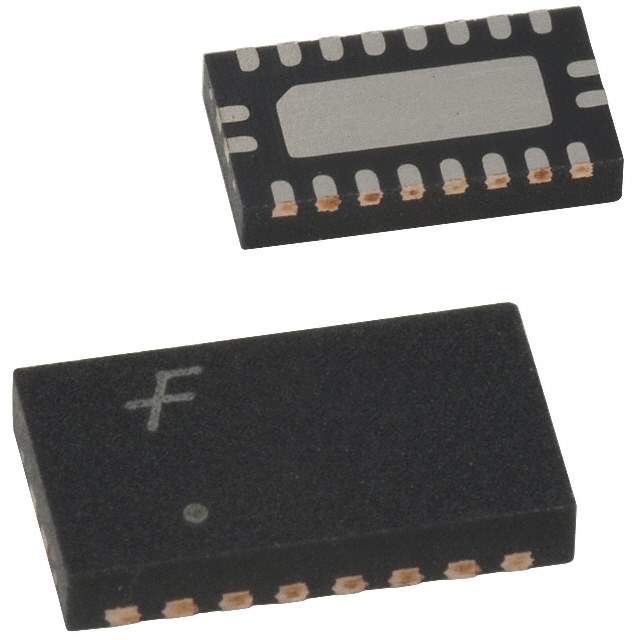

The FSA1208BQX is a low-power, high-bandwidth analog switch manufactured by Fairchild Semiconductor (now ON Semiconductor). It's designed for switching analog or digital signals in various applications where low distortion and minimal signal degradation are crucial.

Applications

• Audio signal routing
• Video signal switching
• USB signal switching
• Data acquisition systems
• Portable media players

Features

• Low On-Resistance (Ron): Typically 0.8 Ω at 3V
• Wide Bandwidth: Up to 300 MHz
• Low Total Harmonic Distortion (THD): -98 dB
• Low Crosstalk: -85 dB
• Single Supply Operation: 1.65V to 5.5V
• Break-Before-Make Switching
• Small Package: 10-Pin MicroPak™

Benefits

• Minimal signal loss and distortion
• High-fidelity signal transmission
• Improved audio and video quality
• Reduced crosstalk between channels
• Low power consumption for battery-powered devices
• Compact size for space-constrained applications

Additional Details

The FSA1208BQX offers excellent performance in terms of on-resistance, bandwidth, and distortion. Its low on-resistance ensures minimal signal attenuation, while its wide bandwidth supports high-frequency signals. The break-before-make switching action prevents short circuits during channel transitions. The small MicroPak™ package makes it ideal for portable and space-sensitive designs. The device is commonly used in portable audio players, smartphones, and other devices requiring high-quality signal switching.

Technical Specifications:

• Supply Voltage: 1.65V to 5.5V
• On-Resistance (Ron): 0.8 Ω (typical)
• Bandwidth: 300 MHz
• Total Harmonic Distortion (THD): -98 dB
• Crosstalk: -85 dB
• Operating Temperature Range: -40°C to +85°C
• Package: 10-Pin MicroPak™
