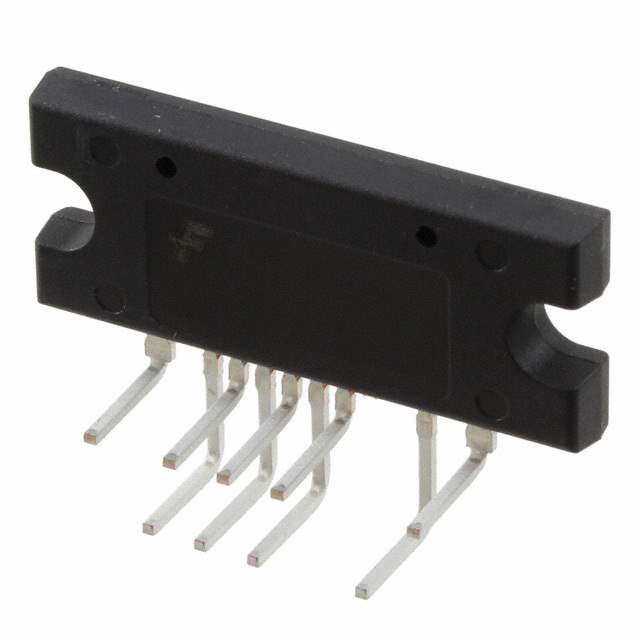

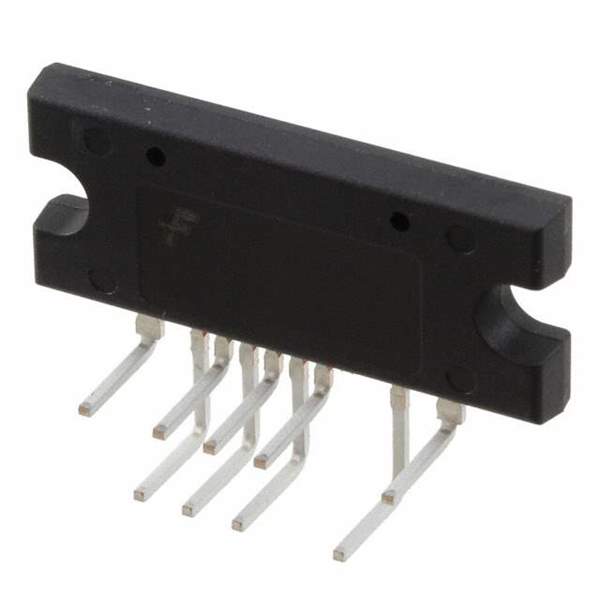

FSFR2100XSL Real Image
Same model may have multiple batches, images only for reference.

FSFR2100XSL

Part No FSFR2100XSL
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description Power Switch Hi Side/Lo Side 1-OUT 10.5A 0.41Ohm 9-Pin SIP Tube / IC FPS PWR SWITCH 400W 9-SIPL
Datasheet
FSFR2100XSL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 500V
Topology Half-Bridge
Voltage - Start Up 12.5V
Supply Voltage - Operating 10 V to 25 V
Duty Cycle 50%
Frequency - Switching Up to 300kHz
Power (Watts) 400W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 130°C (TJ)
Case / Package 9-SIP (L forming)
Mounting Through Hole
Win Source Part Number 067519-FSFR2100XSL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 380
Family Name FSFR2100XS
Introduction Date October 12, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FSFR2100XSL CAD Model

Description

The FSFR2100XSL is a half-bridge topology integrated circuit from the FSFR2100XS family manufactured by Fairchild/ON Semiconductor.

  • Power Rating: 400W
  • Voltage Breakdown: 500V
  • Internal Switch: Yes
  • Isolation: Yes
  • Frequency Switching: Up to 300kHz
  • Duty Cycle: 50%
  • Control Features: Frequency control
  • Fault Protection: Current limiting, over-temperature, and over-voltage protection
  • Package: 9-SIP (L forming)
  • Temperature Range: -40°C to 130°C (TJ)
