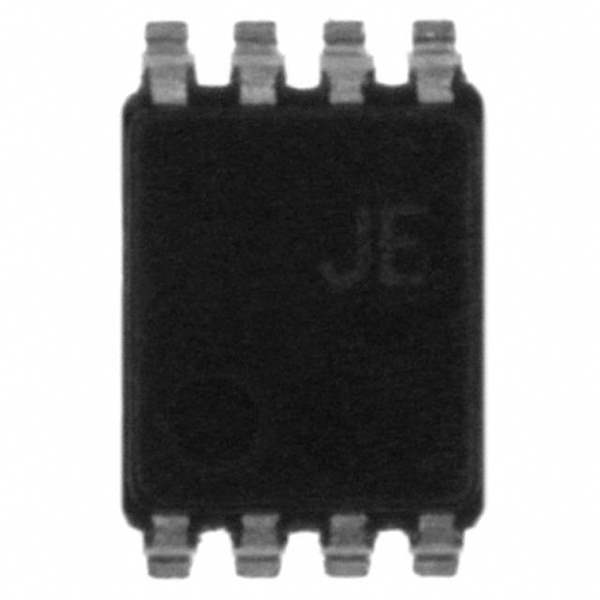

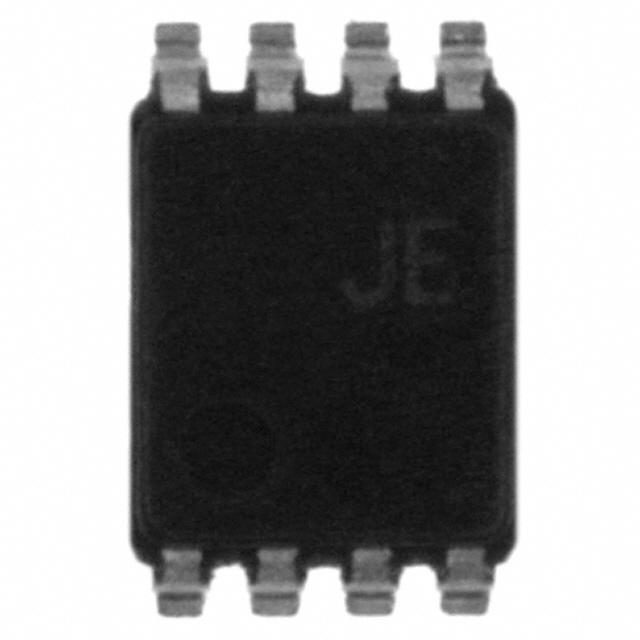

FSUSB46K8X Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FSUSB46K8X

Part No FSUSB46K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches - Special Purpose
Description Hi-Speed USB2.0 (480Mbps) DPST Switch with Dedicated Charger Port Detection
Datasheet
FSUSB46K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Applications USB
Switch Circuit DPST
Number of Channels 1
On-State Resistance (Maximum) 6.5 Ohm
Operating Supply Voltage 3 V ~ 4.3 V
-3db Bandwidth 720MHz
Features Break-Before-Make, USB 2.0
Operating Temperature Range -40°C ~ 85°C (TA)
Package 8-VFSOP (0.091", 2.30mm Width)
Manufacturer Package US8
Win Source Part Number 1176116-FSUSB46K8X
Manufacturer Homepage www.fairchildsemi.com
Family Name FSUSB46
Introduction Date March 06, 2008
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FSUSB46K8X CAD Model

Description

The Fairchild/ON Semiconductor 1176116-FSUSB46K8X is an integrated circuit designed for USB applications.

  • Feature: Break-before-make
  • Compatibility: USB 2.0 compatible
  • Package: 8-VFSOP (0.091", 2.30mm Width)
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Supply and Demand Status: Balanced
  • -3db Bandwidth: 720MHz
  • Switch Circuit: DPST
  • Channel Count: 1
  • Family: FSUSB46
  • Supply: Dual voltage
  • Alternative Parts (cross-reference): FSUSB46UMX, FSUSB46L8X_F113, and FSUSB46L8X
  • Introduction Date: March 06, 2008
  • ECCN: EAR99
  • Halogen-Free: Compliant
  • Quantity per Package: 3k pcs
