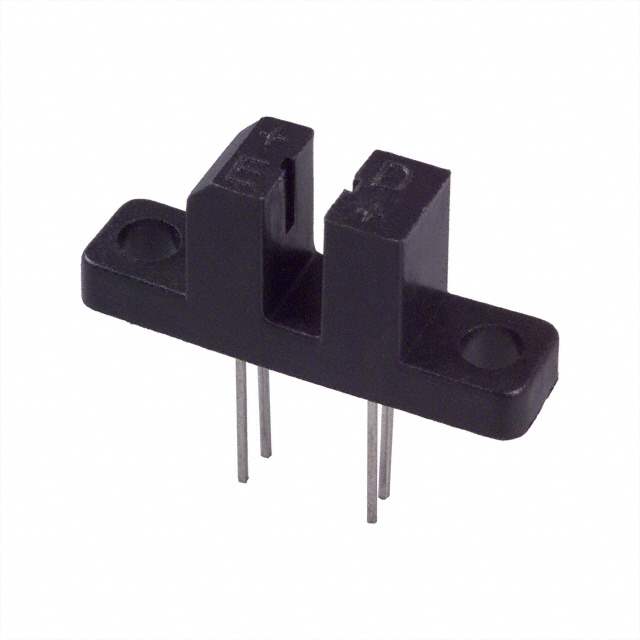

H21B1 Fairchild/ON Semiconductor H21B1 Real Image H21B1 real image H21B1 label picture
Same model may have multiple batches, images only for reference.
H21B1 Fairchild/ON Semiconductor H21B1 Real Image H21B1 real image H21B1 label picture
H21B1 Fairchild/ON Semiconductor H21B1 Real Image H21B1 real image H21B1 label picture
Same model may have multiple batches, images only for reference.

H21B1

Part No H21B1
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPTO SLOT 3MM DARL THRU
Datasheet
H21B1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Sensing Distance 0.118" (3mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 40mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Response Time 7μs, 45μs
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 092205-H21B1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H21B1 CAD Model

Description

The Fairchild/ON Semiconductor 092205-H21B1 is a transmissive unamplified sensor with a sensing distance of 0.118" (3mm). The supply and demand status is balanced. This product is suitable for various applications, including sensing and transducing.
