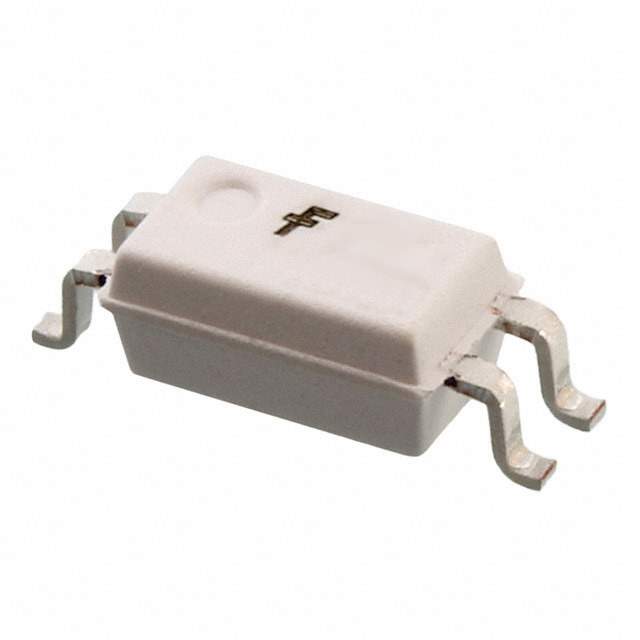

HMHA2801BR1V Real Image
Same model may have multiple batches, images only for reference.

HMHA2801BR1V

Part No HMHA2801BR1V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 4SMD
Datasheet
HMHA2801BR1V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 130% @ 5mA
Maximum DC Current Transfer Ratio 260% @ 5mA
Rise and Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.3V (Max)
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 1043865-HMHA2801BR1V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian HMHA2801BR1V CAD Model

Description

The Fairchild/ON Semiconductor HMHA2801BR1V is a transistor output type optocoupler that has an isolation voltage of 3750Vrms and a continuous forward current of 50mA.

  • Isolation Voltage: 3750Vrms
  • Continuous Forward Current: 50mA
  • DC Current Transfer Ratio (Min): 130% @ 5mA
  • DC Current Transfer Ratio (Max): 260% @ 5mA
  • Temperature Range: -55°C to 100°C
  • Package: 4-Mini-Flat
  • Popularity: Medium
  • Supply and Demand Status: Balance
