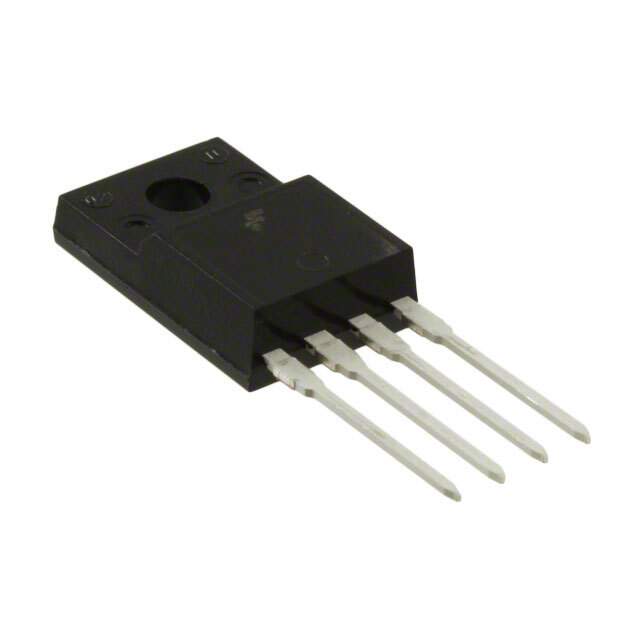

KA78R08CTSTU Real Image
Same model may have multiple batches, images only for reference.

KA78R08CTSTU

Part No KA78R08CTSTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 8V 1A TO220F-4
Datasheet
KA78R08CTSTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 8V
Dropout Voltage-Max 0.5V @ 1A
Output Current 1A
Operating Supply Current 10mA
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage, Short Circuit
Temperature Range - Operating -20°C to 80°C
Mounting Through Hole
Case / Package TO-220F-4L
Win Source Part Number 1050696-KA78R08CTSTU
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian KA78R08CTSTU CAD Model

Description

The Fairchild/ON Semiconductor KA78R08CTSTU is an integrated circuit voltage regulator with a fixed output of 8V.

  • Output Voltage: 8V (Fixed)
  • Maximum Input Voltage: 35V
  • Dropout Voltage: 0.5V @ 1A
  • Protection Features: Overcurrent, overvoltage, over temperature, and short circuit
  • Package: TO-220F-4L
  • Operating Temperature Range: -20°C to 80°C
