Same model may have multiple batches, images only for reference.

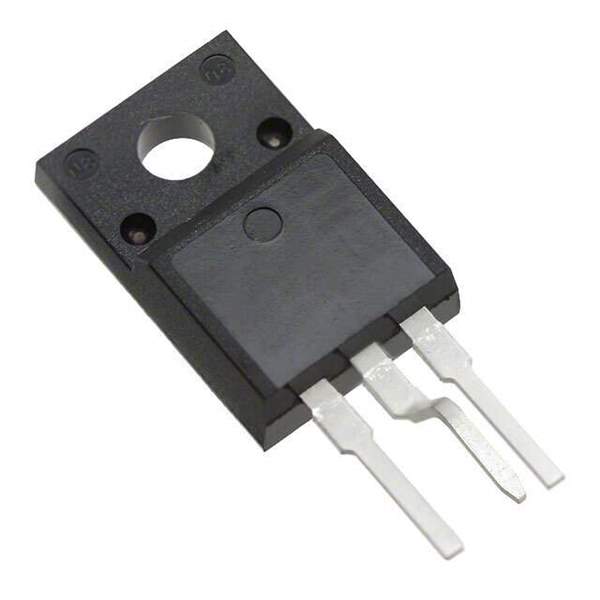

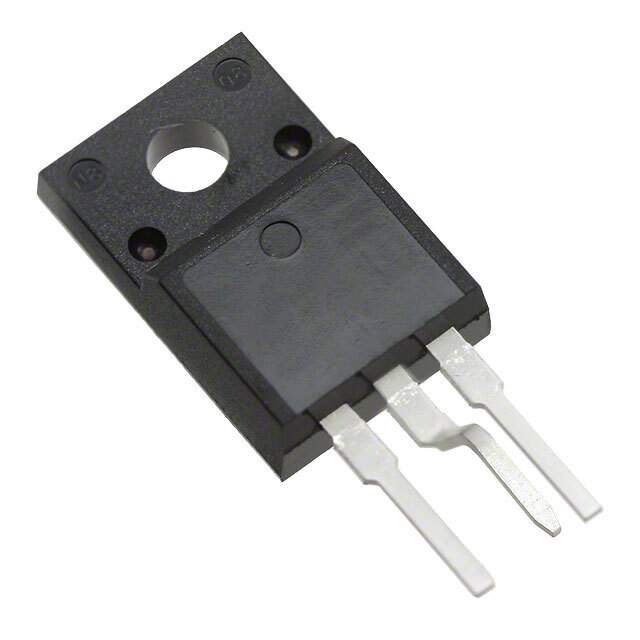

KSC5042FYDTU Real Image
Same model may have multiple batches, images only for reference.

KSC5042FYDTU

Part No KSC5042FYDTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 900V 0.1A TO220F / Trans GP BJT NPN 900V 0.1A 3-Pin(3+Tab) TO-220F Rail
Datasheet
KSC5042FYDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 100mA
Voltage - Collector Emitter Breakdown (Maximum) 900V
Vce Saturation (Maximum) @ Ib, Ic 5V @ 4mA, 20mA
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 30 @ 10mA, 5V
Power - Max 6W
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-220-3 Full Pack, Formed Leads
Manufacturer Package TO-220F-3 (Y-Forming)
Win Source Part Number 778050-KSC5042FYDTU
Popularity Medium
Supply and Demand Status Limited
Family Name KSC5042F
Introduction Date November 14, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian KSC5042FYDTU CAD Model

Description

The Fairchild/ON Semiconductor KSC5042FYDTU is a NPN transistor that is designed for use in discrete semiconductor products.

  • Status: Obsolete (EOL)
  • Maximum Power: 6W
  • Current Collector (Ic) Maximum: 100mA
  • Voltage Collector-Emitter Breakdown (VCEO): 900V
  • Package: TO-220-3 Full Pack, Formed Leads
  • Current Cutoff Maximum: 10μA (ICBO)
  • DC Current Gain (hFE) Minimum @ Ic, Vce: 30 @ 10mA, 5V
  • Supply and Demand Status: Limited
