Same model may have multiple batches, images only for reference.

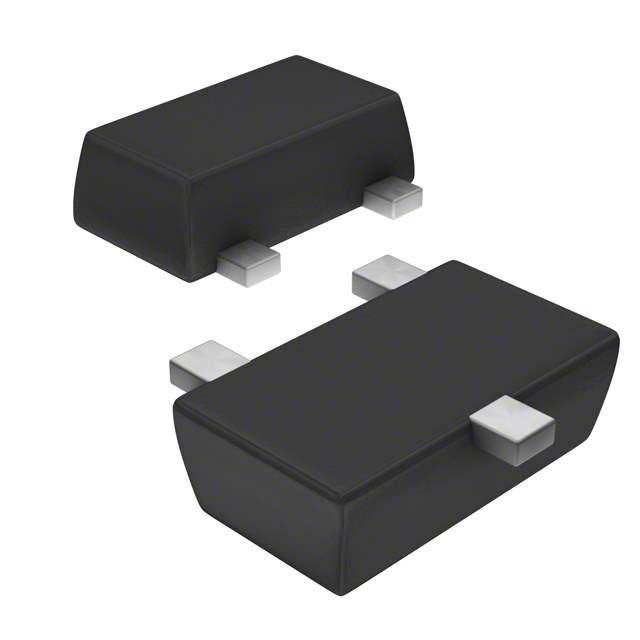

LM431SCCMFX Real Image
Same model may have multiple batches, images only for reference.

LM431SCCMFX

Part No LM431SCCMFX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT ADJ SOT-23F
Datasheet
LM431SCCMFX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Reference Type Shunt
Output Type Adjustable
Nominal Output Voltage (Min/Fixed) 2.495V
Maximum Output Voltage 36V
Output Current 100mA
Tolerance ±0.5%
Temperature Coefficient 50ppm/°C Typical
Current - Cathode 1mA
Temperature Range - Operating -25°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23F-3
Win Source Part Number 002589-LM431SCCMFX
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian LM431SCCMFX CAD Model

Description

The LM431SCCMFX is a shunt adjustable voltage reference from Fairchild/ON Semiconductor.

  • Type: SMD (SMT) integrated circuit
  • Nominal Output Voltage: 2.495V
  • Tolerance: ±0.5%
  • Maximum Output Voltage: 36V
  • Output Current: 100mA
  • Current-Cathode: 1mA
  • Temperature Coefficient: 50ppm/°C typical
  • Package: SOT-23F-3
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand Status: Balance
