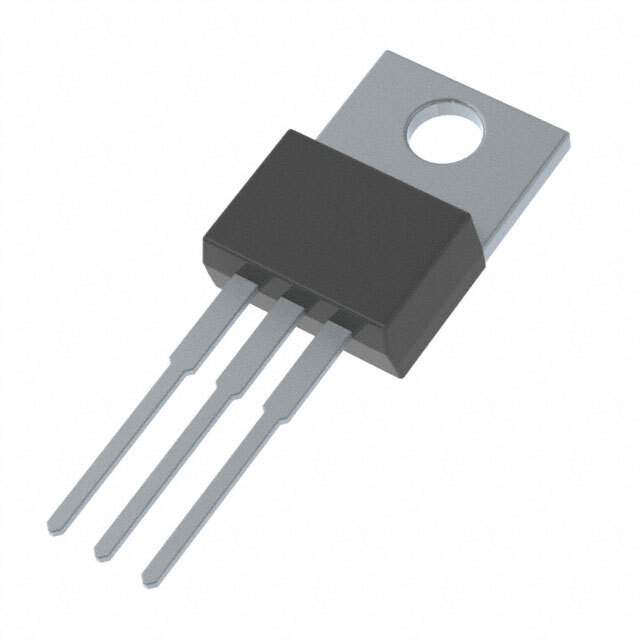

The MC7909CT is a three-terminal negative voltage regulator from Fairchild/ON Semiconductor. It is designed to provide a fixed negative voltage of -9V with a current capability of up to 1A. The device is suitable for a wide range of applications requiring a stable and regulated negative voltage source.

Applications:

• Power supplies for operational amplifiers
• Negative voltage bias for analog circuits
• Microprocessor power
• Linear Regulators
• Instrumentation

Features:

• Fixed output voltage of -9V
• Output current up to 1A
• Internal thermal overload protection
• Short-circuit current limiting
• Output transistor safe-area compensation

Benefits:

• Provides a stable and regulated negative voltage supply for sensitive electronic circuits.
• Protects the regulator from damage due to excessive temperature or output short circuits.
• Simplifies power supply design by requiring minimal external components.
• Improved reliability of the powered circuits due to consistent voltage regulation.
• Cost-effective solution for providing a regulated negative voltage.

Additional Details:

The MC7909CT typically requires input and output capacitors for stability and transient response. The input voltage must be higher (more negative) than the output voltage by at least a few volts. The thermal resistance of the package affects the maximum power dissipation. Consult the Fairchild/ON Semiconductor datasheet for detailed specifications, application notes, and thermal considerations.
