MOC3021M Fairchild/ON Semiconductor MOC3021M label picture
Same model may have multiple batches, images only for reference.
MOC3021M Fairchild/ON Semiconductor MOC3021M label picture
MOC3021M Fairchild/ON Semiconductor MOC3021M label picture
Same model may have multiple batches, images only for reference.

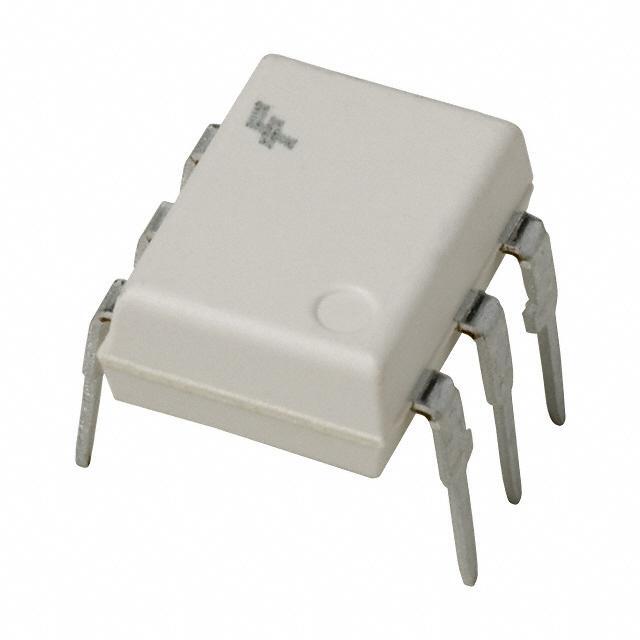

MOC3021M

Part No MOC3021M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description Triac AC-OUT 1-CH 400V 6-Pin PDIP W Tube / OPTOISOLATOR 4.17KV TRIAC 6DIP
Datasheet
MOC3021M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 400V
Current - LED Trigger (Ift) (Max) 15mA
Current - Hold (Ih) 100μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 6-DIP
Approvals UL
Win Source Part Number 024172-MOC3021M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Family Name MOC3021M
Introduction Date October 31, 2001
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MOC3021M CAD Model

Description

The MOC3021M from Fairchild/ON Semiconductor is a single channel Triac output optocoupler.

  • Isolation Voltage: 4170Vrms
  • Forward Voltage: 1.15V
  • Mounting Style: Through-hole
  • Continuous Forward Current: 60mA
  • LED Trigger Current: 15mA
  • Approval: UL
  • Temperature Range: -40°C to 85°C
  • Application: Isolator
  • Package: 6-DIP
