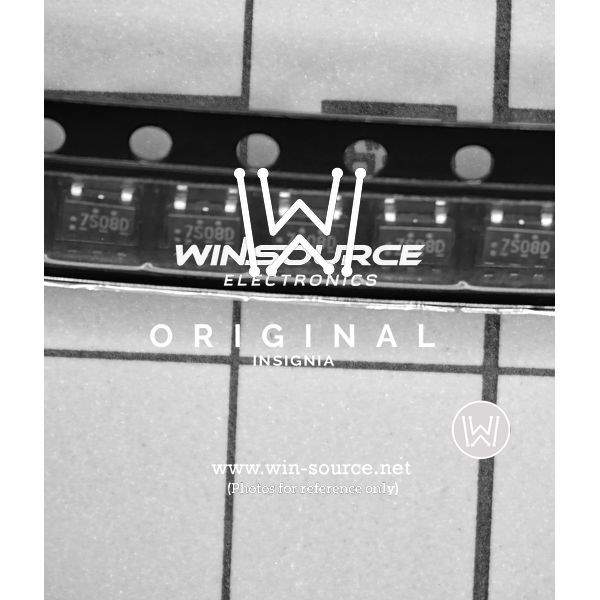

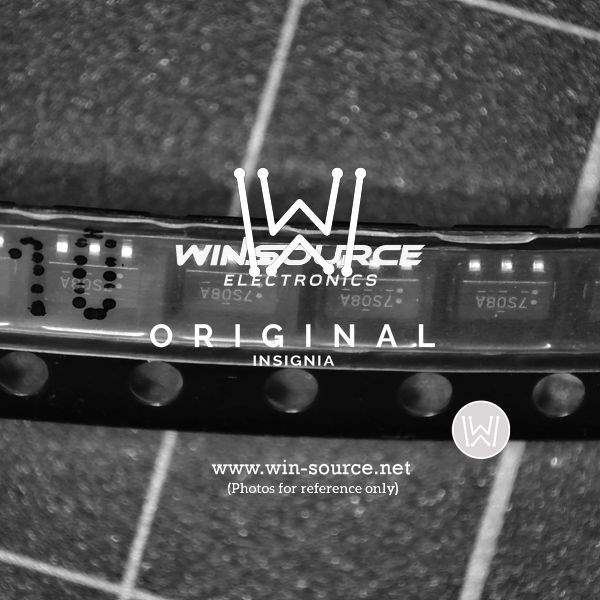

NC7S08M5X Real Image NC7S08M5X real image3853 NC7S08M5X Real Image1 NC7S08M5X Real Image2
Same model may have multiple batches, images only for reference.
NC7S08M5X Real Image NC7S08M5X real image3853 NC7S08M5X Real Image1 NC7S08M5X Real Image2
NC7S08M5X Real Image NC7S08M5X real image3853 NC7S08M5X Real Image1 NC7S08M5X Real Image2
Same model may have multiple batches, images only for reference.

NC7S08M5X

Part No NC7S08M5X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description AND Gate 1-Element 2-IN CMOS 5-Pin SC-74A T/R / IC GATE AND 1CH 2-INP SOT-23-5
Datasheet
NC7S08M5X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type AND Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.5V
Logic Level - High 1.5V
Max Propagation Delay @ V, Max CL 17ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Dimension SC-74A, SOT-753
Win Source Part Number 024732-NC7S08M5X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Quantity per package 3k pcs
Family Name NC7S08
Introduction Date November 16, 1999
ECCN EAR99
Country of Origin China, Malaysia, Philippines, Thailand
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NC7S08M5X CAD Model

Description

The NC7S08M5X is a logic gate integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Win Source Part Number: 024732-NC7S08M5X
  • Maximum Propagation Delay: 17ns @ 6V, 50pF
  • Current Quiescent (Max): 1μA
  • Case/Package: SOT-23-5
  • Supply Voltage Operating Range: 2V to 6V
