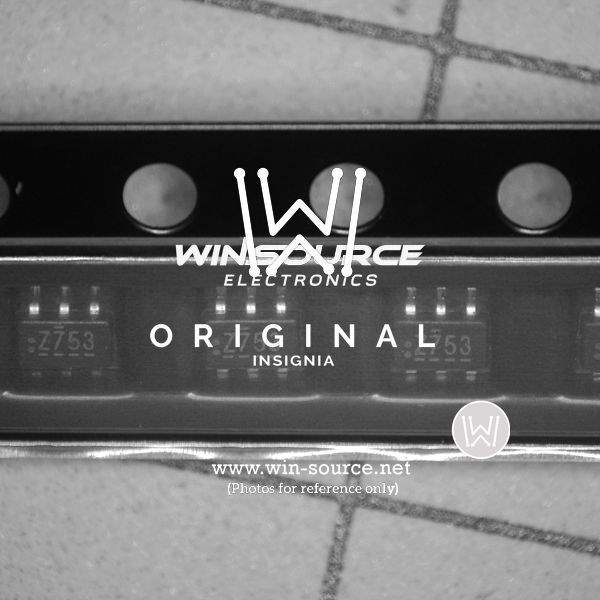

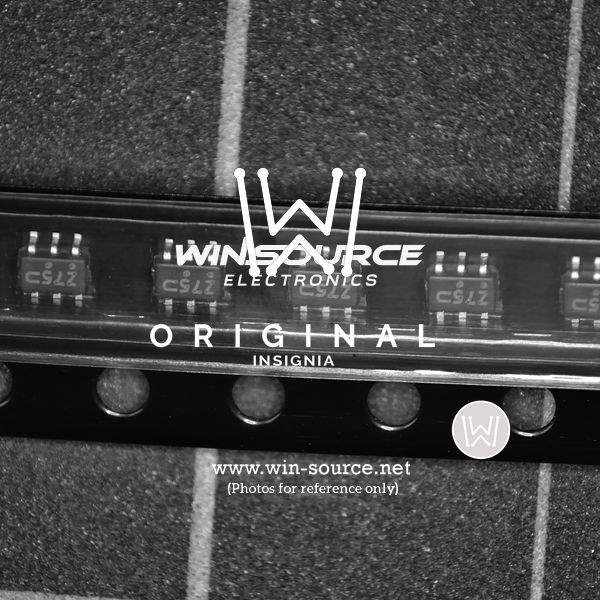

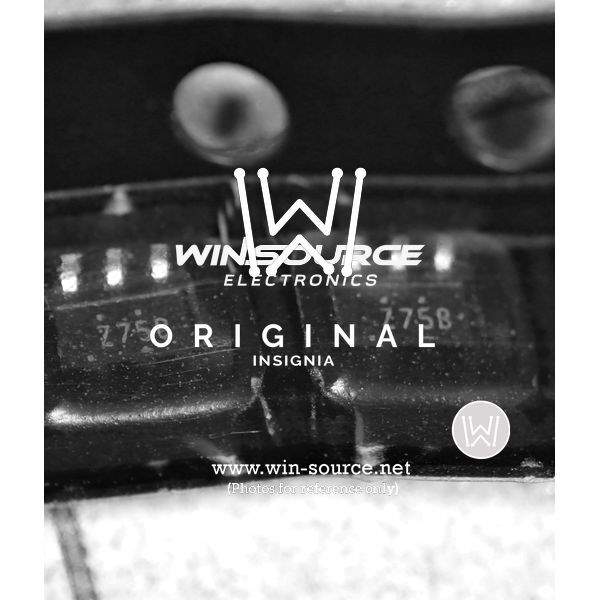

NC7SZ175P6X Real Image NC7SZ175P6X real image3902 NC7SZ175P6X real image3903 NC7SZ175P6X Real Image1 NC7SZ175P6X Real Image2 NC7SZ175P6X Real Image3
Same model may have multiple batches, images only for reference.
NC7SZ175P6X Real Image NC7SZ175P6X real image3902 NC7SZ175P6X real image3903 NC7SZ175P6X Real Image1 NC7SZ175P6X Real Image2 NC7SZ175P6X Real Image3
NC7SZ175P6X Real Image NC7SZ175P6X real image3902 NC7SZ175P6X real image3903 NC7SZ175P6X Real Image1 NC7SZ175P6X Real Image2 NC7SZ175P6X Real Image3
Same model may have multiple batches, images only for reference.

NC7SZ175P6X

Part No NC7SZ175P6X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Flip Flops
Description IC D-TYPE POS TRG SNGL SC70-6 / Flip Flop D-Type Pos-Edge 1-Element 6-Pin SC-70 T/R
Datasheet
NC7SZ175P6X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Purpose Reset
Type D-Type
Output Type Non-Inverted
Number of Elements 1
Number of Bits per Element 1
Max Frequency 175MHz
Max Propagation Delay @ V, Max CL 4ns @ 5V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 32mA, 32mA
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent 1μA
Input Capacitance 3pF
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 6-TSSOP, SC-88, SOT-363
Win Source Part Number 024821-NC7SZ175P6X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Quantity per package 3k pcs
Family Name NC7SZ175
Introduction Date May 01, 1998
ECCN EAR99
Country of Origin China, Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date 2025

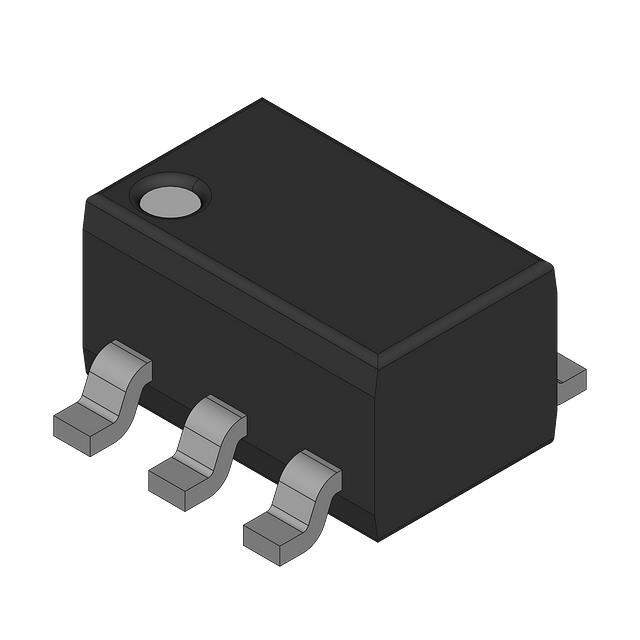

Ultra Librarian 3D Model Ultra Librarian NC7SZ175P6X CAD Model

Description

The Fairchild/ON Semiconductor NC7SZ175P6X is a D-Type integrated circuit with non-inverted output type.

  • Type: D-Type
  • Output Type: Non-inverted
  • Current Output High and Low: 32mA, 32mA
  • Elements: One
  • Bits per Element: One
  • Maximum Propagation Delay: 4ns @ 5V, 50pF
  • Trigger Type: Positive edge
  • Quiescent Current: 1μA
  • Input Capacitance: 3pF
  • Category: Integrated Circuits
  • Status: Active
  • Temperature Range: -40°C to 85°C (TA)
  • Dimension: 6-TSSOP, SC-88, SOT-363
  • Purpose: Reset
  • Supply Voltage Range: 1.65 V to 5.5 V
  • Maximum Frequency: 175MHz
  • Family: NC7SZ175
  • Applications: Industrial
  • Package Quantity: 3k pcs
