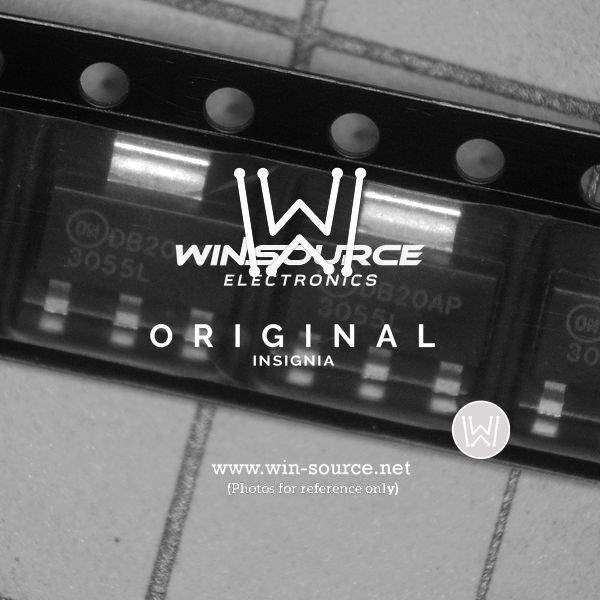

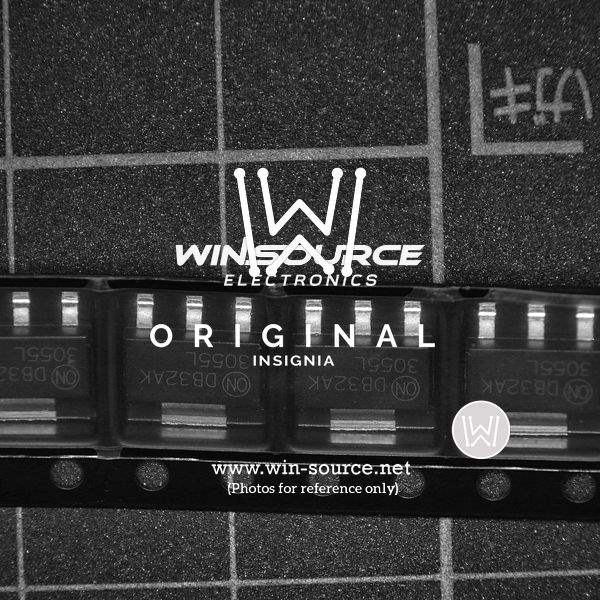

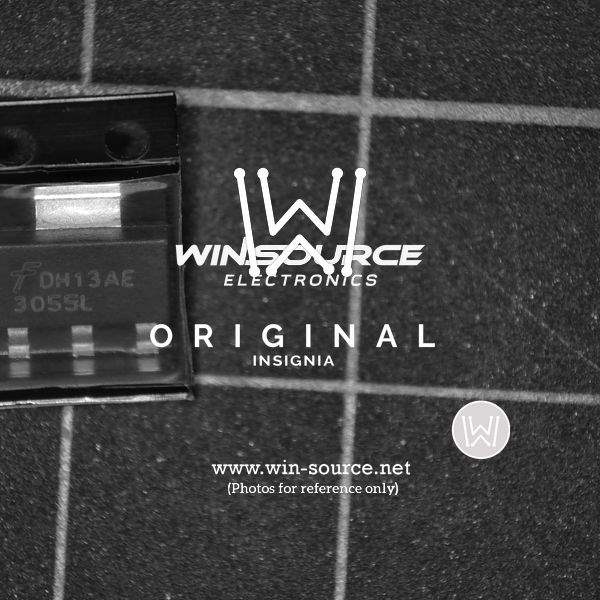

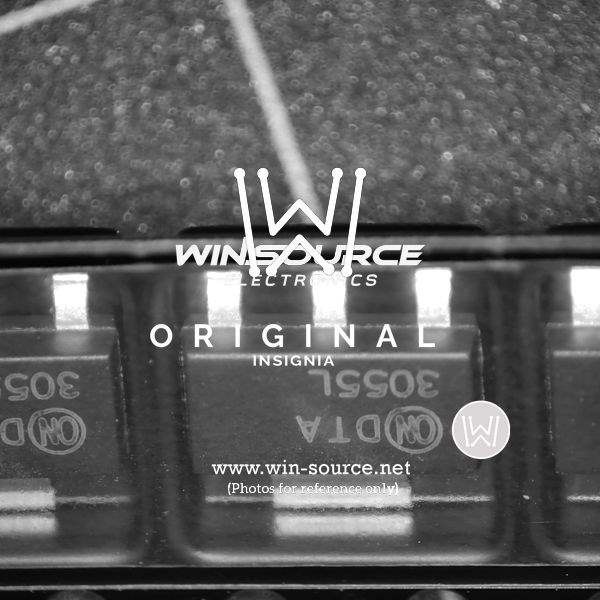

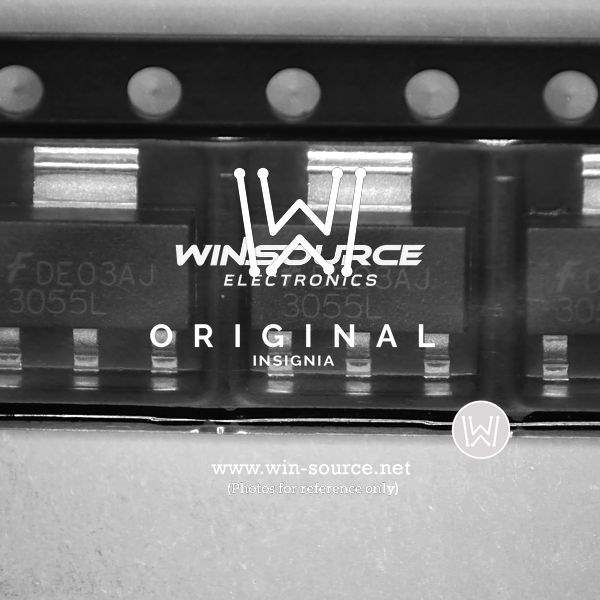

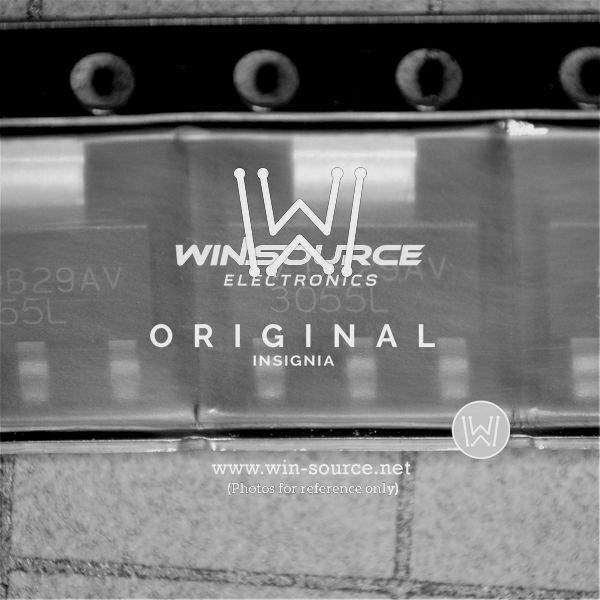

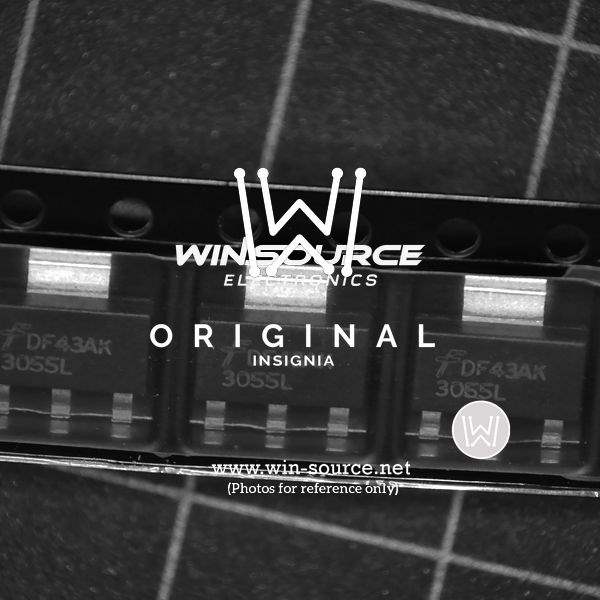

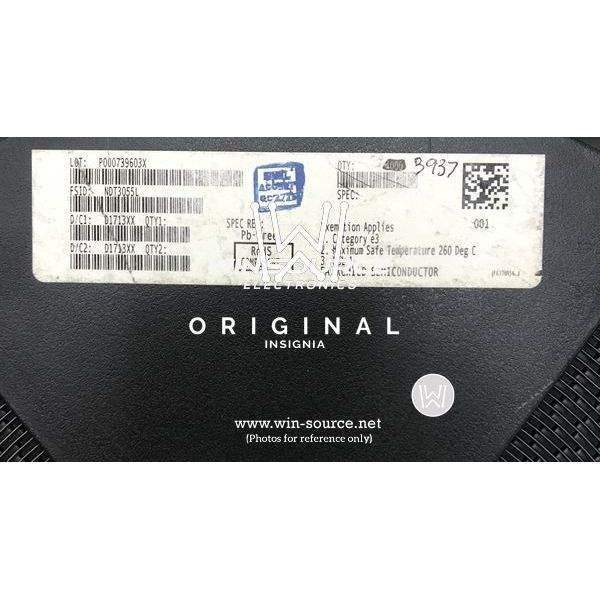

NDT3055L Fairchild/ON Semiconductor NDT3055L real image4029 NDT3055L real image4030 NDT3055L Real Image1 NDT3055L Real Image2 NDT3055L Real Image3 NDT3055L Real Image4 NDT3055L Real Image5 NDT3055L Real Image6 NDT3055L Real Image7 NDT3055L Real Image8 NDT3055L Real Image9 NDT3055L Real Image10 NDT3055L Real Image11 NDT3055L Real Image12 NDT3055L Real Image13 NDT3055L Real Image14 NDT3055L label picture NDT3055L real image
Same model may have multiple batches, images only for reference.
NDT3055L Fairchild/ON Semiconductor NDT3055L real image4029 NDT3055L real image4030 NDT3055L Real Image1 NDT3055L Real Image2 NDT3055L Real Image3 NDT3055L Real Image4 NDT3055L Real Image5 NDT3055L Real Image6 NDT3055L Real Image7 NDT3055L Real Image8 NDT3055L Real Image9 NDT3055L Real Image10 NDT3055L Real Image11 NDT3055L Real Image12 NDT3055L Real Image13 NDT3055L Real Image14 NDT3055L label picture NDT3055L real image
NDT3055L Fairchild/ON Semiconductor NDT3055L real image4029 NDT3055L real image4030 NDT3055L Real Image1 NDT3055L Real Image2 NDT3055L Real Image3 NDT3055L Real Image4 NDT3055L Real Image5 NDT3055L Real Image6 NDT3055L Real Image7 NDT3055L Real Image8 NDT3055L Real Image9 NDT3055L Real Image10 NDT3055L Real Image11 NDT3055L Real Image12 NDT3055L Real Image13 NDT3055L Real Image14 NDT3055L label picture NDT3055L real image
Same model may have multiple batches, images only for reference.

NDT3055L

Part No NDT3055L
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 4A SOT-223-4
Datasheet
NDT3055L Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 20nC @ 10V
Max Input Capacitance 345pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3W (Ta)
Maximum Rds On at Id,Vgs 100 mOhm @ 4A, 10V
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223-4
Dimension TO-261-4, TO-261AA
Win Source Part Number 025180-NDT3055L
Family Name NDT3055L
Introduction Date November 09, 1998
ECCN EAR99
Country of Origin Philippines, Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Motor Drive & Control, Automotive
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian NDT3055L CAD Model

Description

The Fairchild/ON Semiconductor 259003 is an N-Channel MOSFET transistor that is designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current @ 25°C: 4A (Ta)
  • Package: SOT-223-4
  • Mounting: SMD (SMT) technology
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Input Capacitance: 345pF @ 25V
  • Power Dissipation: 3W (Ta)
  • Operating Temperature Range: -65°C to 150°C (TJ)
  • Applications: Power management, motor drive & control, and automotive applications. and a sufficient supply and demand status
  • Halogen-Free: Compliant
  • ECCN: EAR99
  • Quantity per Package: 4k pcs
