The NM27C256Q150 is a 256K (32K x 8) UV Erasable PROM (EPROM) manufactured by Fairchild/ON Semiconductor. This is a non-volatile memory device that can be electrically programmed and erased by exposure to ultraviolet light. The '150' likely refers to an access time of 150ns. It is used to store firmware and program code in embedded systems where infrequent updates are required.

Applications:

• Embedded systems
• Microcontroller program storage
• Industrial control equipment
• Robotics
• Legacy computer systems

Features:

• 256K (32K x 8) memory organization: Offers 256 kilobits of storage, organized as 32,768 bytes.
• UV Erasable PROM (EPROM): Programmable electrically, erasable with ultraviolet light.
• Non-volatile memory: Retains stored data without power.
• TTL compatible inputs/outputs: Simplifies interfacing with TTL logic.
• Fast Access Time: 150ns access time for relatively quick data retrieval.
• Three-state outputs: Allows for easy memory expansion and bus sharing.

Benefits:

• Reliable Non-Volatile Storage: Stores data reliably without needing continuous power.
• Reprogrammable (UV Erase): Allows for firmware updates and code changes, though requiring UV erasure.
• Easy to Interface: TTL compatibility simplifies integration with various digital circuits.
• Suitable for Embedded Applications: Ideal for storing program code in systems requiring infrequent updates.
• Enables System Flexibility: The three-state outputs allow for multiplexing and bus-oriented designs.

Additional Details:

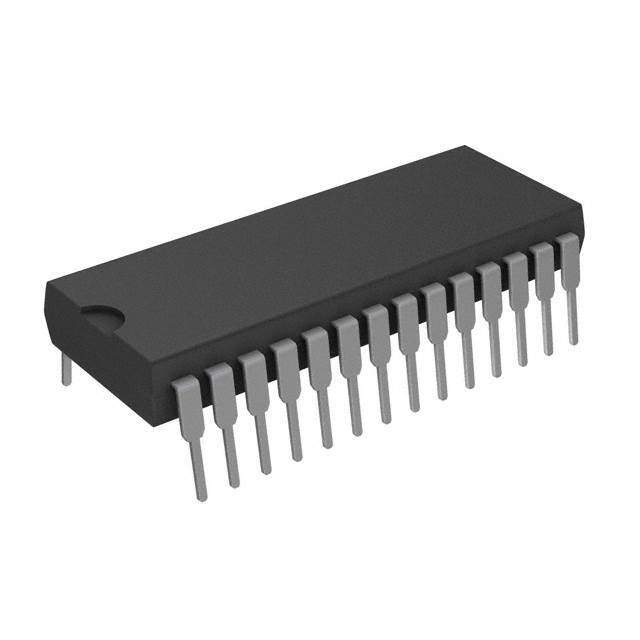

The NM27C256Q150 is typically housed in a 28-pin DIP package. The device is programmed using a PROM programmer, and erased by exposing the quartz window on the package to UV light for a specific period (usually 20-30 minutes). While EPROMs have been largely superseded by EEPROMs and flash memory due to the electrical erasability of the latter, they still find applications in legacy systems and situations where the reprogramming frequency is very low. The part is designed for a single 5V power supply operation. Address and data lines are multiplexed, and a chip enable (CE) pin is used for device selection. Output enable (OE) is used to control the three-state outputs.
