Same model may have multiple batches, images only for reference.

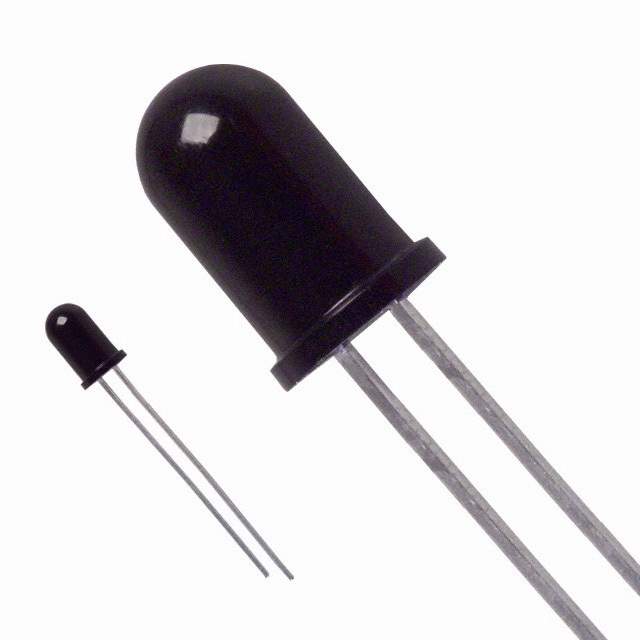

QSD124 Real Image
Same model may have multiple batches, images only for reference.

QSD124

Part No QSD124
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description IC PHOTOTRANS IR 880NM BLACK 5MM
Datasheet
QSD124 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 24°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension T 1 3/4
Win Source Part Number 135838-QSD124
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Signal Processing, LED Lighting
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian QSD124 CAD Model

Description

The QSD124 is a through-hole mounted top view sensor manufactured by Fairchild/ON Semiconductor.

  • Viewing Angle: 24 degrees
  • Wavelength: 880nm
  • Current - Dark (Id) (Max): 100nA
  • Applications: industrial, signal processing, and LED lighting
  • Maximum Power Dissipation: 100mW
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Operating Temperature Range: -40°C to 100°C (TA)
  • Packaging: bulk
  • Supply and Demand Status: limited
  • Applications: sensing and transducer
