Same model may have multiple batches, images only for reference.

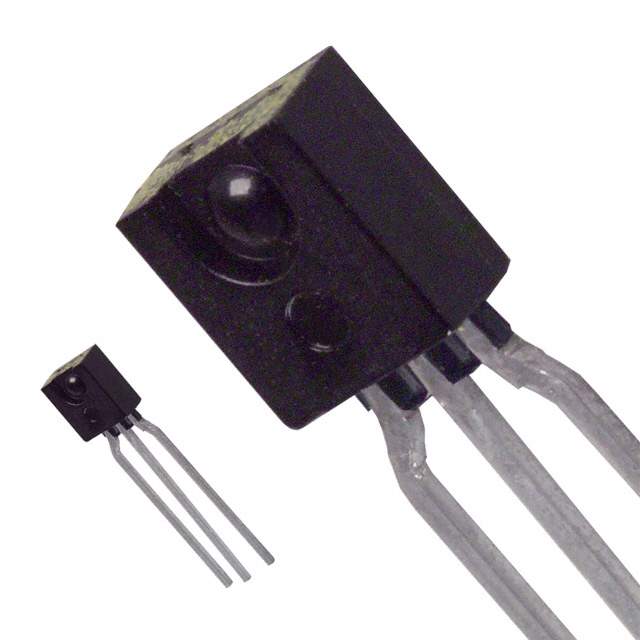

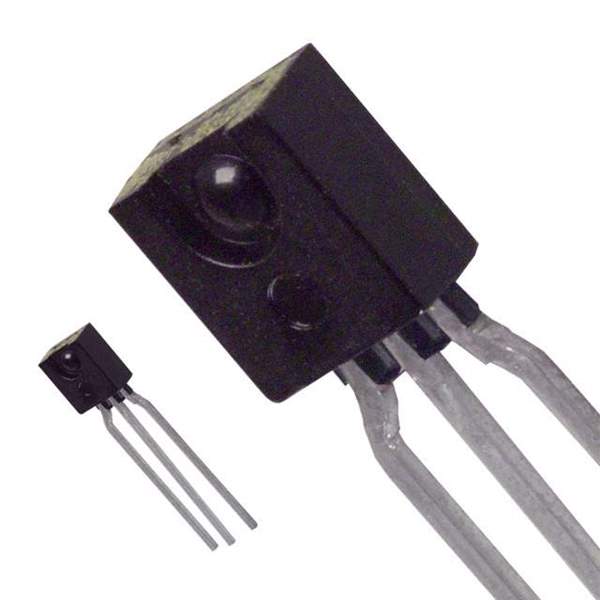

QSE156 Real Image
Same model may have multiple batches, images only for reference.

QSE156

Part No QSE156
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Photo Detectors - Logic Output
Description IC SENSOR BUFF TOTEM SIDE-LOOKER
Datasheet
QSE156 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
Wavelength 880nm
Type Photo Detector, Logic Output
Output Type Push-Pull
Temperature Range - Operating -40°C to 85°C (TA)
Win Source Part Number 210463-QSE156
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian QSE156 CAD Model

Description

The Fairchild/ON Semiconductor QSE156 is a logic output photo detector designed for sensor and transducer applications.

  • Output Type: Push-pull
  • Wavelength: 880nm
  • Popularity: Medium
  • Usage: Industrial applications for sensing purposes
  • Package: 500
