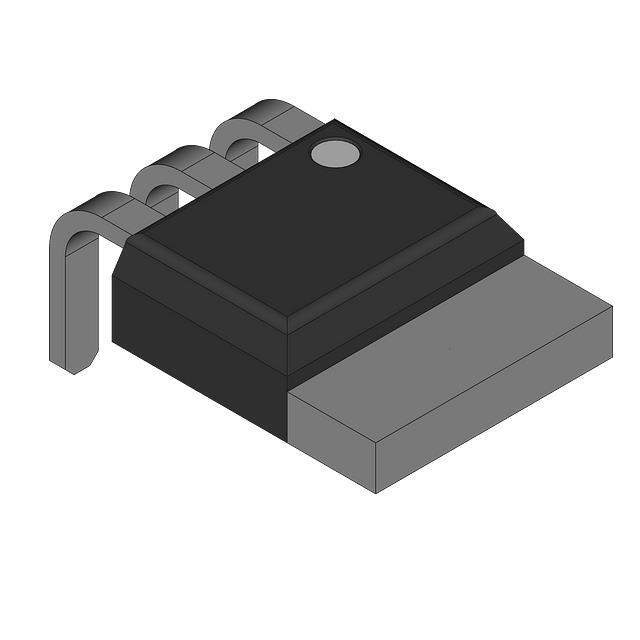

RFD14N05L

Name: RFD14N05L
Brand: Fairchild/ON Semiconductor
SKU: 293996
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RFD14N05L
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 50V 14A TO-252AA
Datasheet	RFD14N05L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	50V
Continuous Drain Current at 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V
Gate-Source Threshold Voltage	2V @ 250μA
Max Gate Charge	40nC @ 10V
Max Input Capacitance	670pF @ 25V
Maximum Gate-Source Voltage	±10V
Power Dissipation (Max)	48W (Tc)
Maximum Rds On at Id,Vgs	100 mOhm @ 14A, 5V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	TO-252AA
Dimension	TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number	093332-RFD14N05L
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Power Management, Consumer Electronics, Portable Devices, Industrial
Quantity per package	1,800
Ultra Librarian 3D Model	Ultra Librarian RFD14N05L CAD Model

Alternative Products

Description

The supply and demand status for this product is balanced, making it a great option for those in need of a power management component.

Supply and Demand Status: balanced
Application: commonly used in consumer electronics, portable devices, and industrial applications
Power Dissipation: maximum power dissipation of 48W
Continuous Drain Current: continuous drain current of 14A @ 25°C
