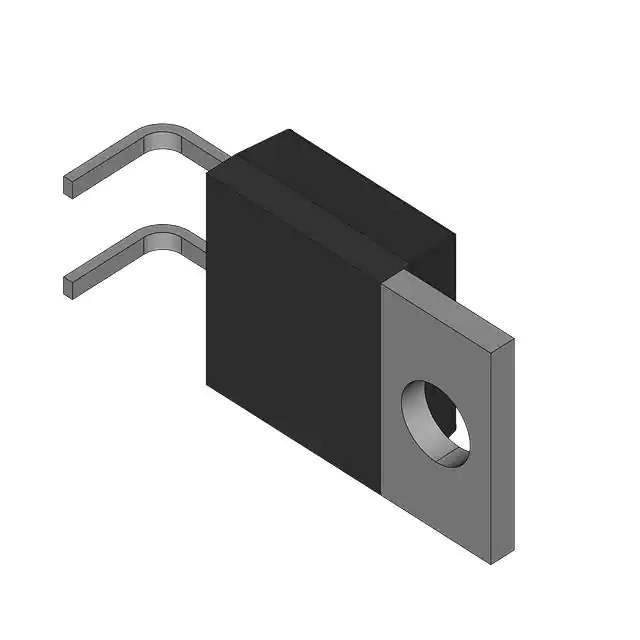

RURP1520 Real Image
Same model may have multiple batches, images only for reference.

RURP1520

Part No RURP1520
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE AVALANCHE 200V 15A TO220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Active
Technology Avalanche
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 100 µA @ 200 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -55°C ~ 175°C
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 932564-RURP1520
Ultra Librarian 3D Model Ultra Librarian RURP1520 CAD Model

Description

The RURP1520 is a rectifier diode that belongs to the avalanche technology manufactured by Fairchild/ON Semiconductor.

  • Maximum DC Reverse Voltage (Vr): 200V
  • Average Rectified Current (Io): 15A
  • Forward Voltage (Vf): 1.05V @ 15A
  • Reverse Recovery Time (trr): 35ns
  • Reverse Leakage Current: 100µA @ 200V
  • Mounting Type: Through-Hole
  • Package / Case: TO-220-2
  • Lifecycle Status: Active
